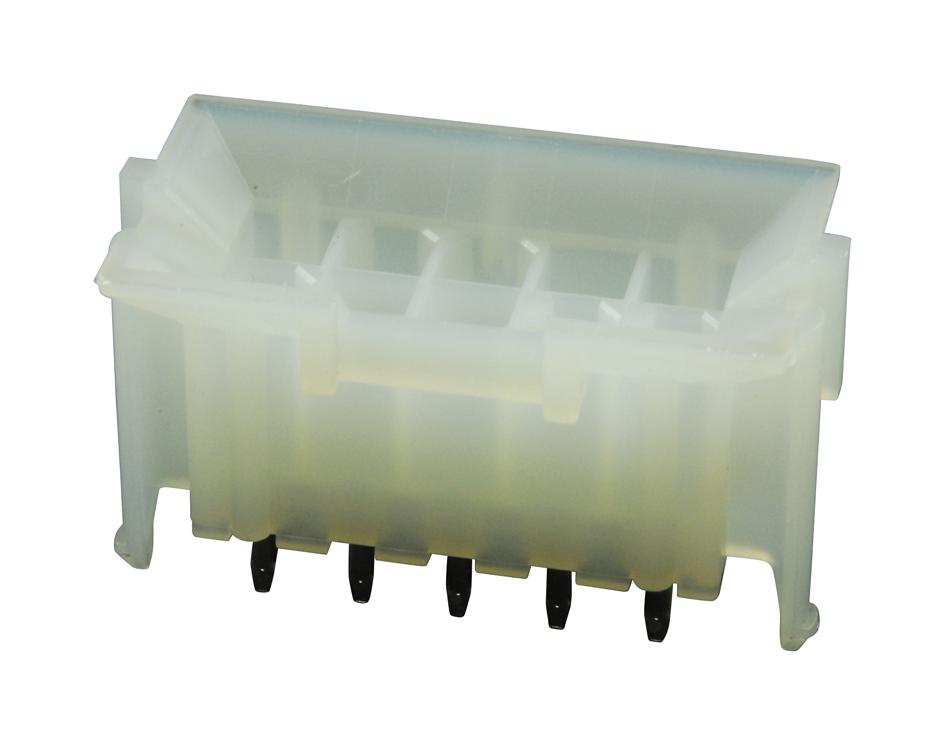

MOLEX 15246102 Power Header
The Mini-Fit BMI Header is a reliable 4.20mm pitch, dual-row connector designed for power and wire-to-board applications. Made with PA Polyamide Nylon 6/6 and UL 94V-0 flammability rating, it features a sturdy tin-plated brass construction with a vertical orientation and snap-in plastic peg PCB lock. Suitable for operating temperatures from -40°C to +105°C, it supports up to 13A per circuit and 600V. Its compact design ensures durability up to 30 mating cycles, ideal for industrial power and electronic assemblies.
MOLEX 15246102 Power Header Specifications:
- Pitch: 4.20mm
- Number of Circuits: 10
- Material: PA Polyamide Nylon 6/6
- Flammability: UL 94V-0
- Plating Mating: 2.540um Tin
- Material - Metal: Brass
- Current per Circuit: 13A
- Voltage Rating: 600V
- Operating Temperature Range: -40°C to +105°C
- Durability (mating cycles): 30
- Color - Resin: Natural (White)
- PCB Tail Length: 3.56mm
- PCB Thickness - Recommended: 1.80mm
Buy the Molex 15246102 – Reliable Power Header for Industrial Applications
Get the Molex Mini-Fit BMI Power Header online today and enjoy a high-quality, durable connection solution perfect for power and wiring applications. Featuring a 4.20mm pitch, 10 circuits, and up to 13A per circuit, this connector supports operating temperatures from -40°C to +105°C. Its UL 94V-0 nylon body, tin-plated brass contacts, and snap-in PCB lock provide mechanical stability and electrical reliability. Designed for industrial electronics, it ensures secure, long-lasting performance in power distribution, PCB assembly, and automation systems.
Order your Molex Series15246102 power connector today and ensure robust, reliable electrical connections in your industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 15246102?
You can click on the BUY or RFQ button to purchase 15246102 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15246102?
You can download the 15246102 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15246102?
MOLEX
