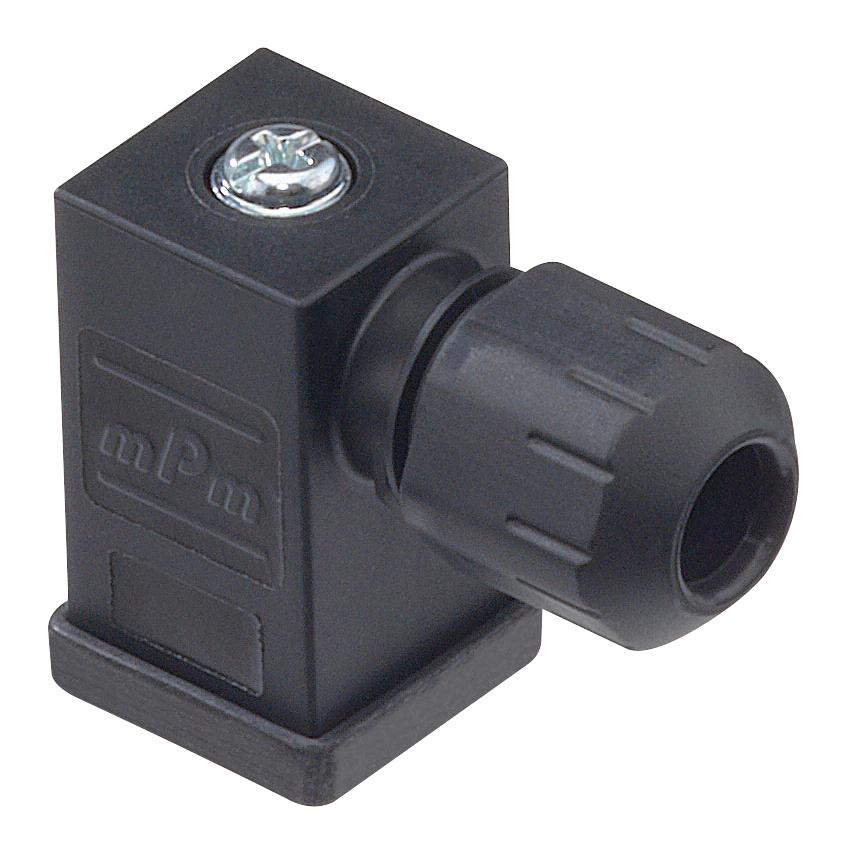

MOLEX 1212050005 DIN Valve Connector
The mPm DIN Valve Connector is an industrial-grade, external thread connector designed for reliable electrical connections in demanding environments. It features a 3-pole plus ground configuration, rated for 250V AC/DC, with a durable black nitrile gasket for sealing. Constructed with Brass body and polyamide insulator, it offers IP65/IP67 ratings for water and dust resistance. Suitable for applications requiring a 90° angle orientation, and supporting wire sizes up to 16 AWG, it ensures safe and efficient electrical performance with a maximum current of 16A. Certified RoHS, China RoHS, and compliant with environmental standards.
MOLEX 1212050005 DIN Valve Connector Specifications:
- Series: 121205
- Form: C - Industrial
- IP Rating: IP65, IP67
- Material - Contact: Brass
- Material - Connector Body: Polyamide
- Material - Coupling Nut: N/A
- Material - Plating Mating: Silver
- Coupling Type: External Thread
- Dimensions - Cable Diameter: 9.40mm
- Poles: 3 poles plus ground
- Temperature Range - Operating: -40°C to +90°C
- Wire Size AWG: 16.0A maximum current, supporting wire sizes up to 16 AWG
- Voltage - Maximum: 250V AC/DC
- Current - Maximum per Contact: 16A
- Orientation: 90° Angle
Buy the Molex 1212050005 – Reliable DIN Valve Connectors for Industrial Applications
Purchase the Molex DIN Valve Connector today for robust and reliable electrical connections in industrial settings. Featuring IP65/IP67 ratings, brass construction, silver plating, and a 90° angle design, it supports up to 16 AWG wire sizes and a maximum current of 16A at 250V. Its external thread and Nitrile gasket ensure water and dust resistance. Easily attachable in demanding environments, this connector guarantees safety, efficiency, and durability, making it the ideal choice for automation, control panels, and machinery in various industries.
Get Molex 1212050005 today—built for precision and long-lasting durability in industrial environments with IP65/IP67 ratings and high current capacity.
Frequently Asked Questions
Where can I buy MOLEX 1212050005?
You can click on the BUY or RFQ button to purchase 1212050005 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1212050005?
You can download the 1212050005 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1212050005?
MOLEX
