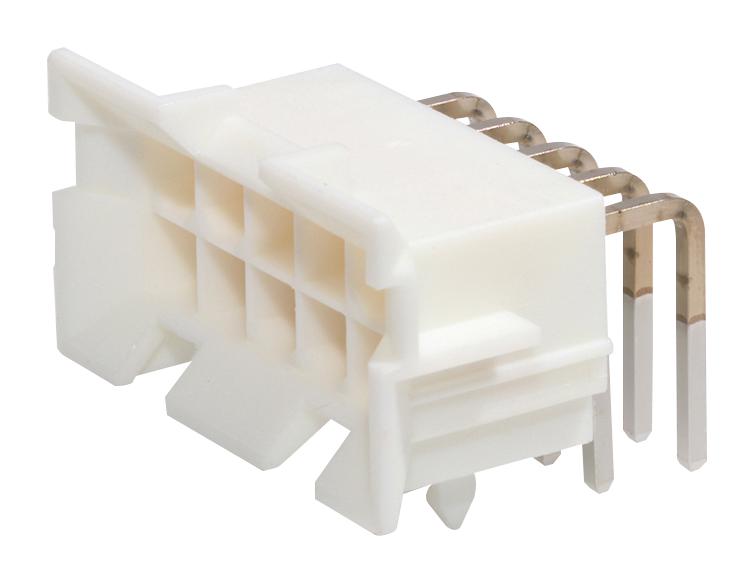

MOLEX 15246103 Mini-Fit BMI Connector
The Mini-Fit BMI Header is a compact, high-current connector designed for board-to-board and power applications. Made from durable PA Polyamide Nylon 6/6 and rated UL 94V-0, it features a right-angle orientation with 10 circuits, snap-in plastic PCB lock, and gold-plated brass contacts for reliable connections. It supports a maximum current of 13A per circuit at a maximum voltage of 600V and can withstand up to 105°C operating temperature. This shrouded, polarity- and stackable connector provides secure mating with versatile PCB retention and is RoHS compliant for environmentally friendly usage.
MOLEX 15246103 Mini-Fit BMI Connector Specifications:
- Number of Circuits: 10
- Operating Temperature: -40°C to +105°C
- Current per Circuit: 13A max
- Voltage: 600V max
- Material - Resin: PA Polyamide Nylon 6/6
- Flammability: UL 94V-0
- Material - Contact: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Color - Resin: Natural (White)
- Orientation: Right Angle
- PC Tail Length: 3.30mm
- PCB Thickness - Recommended: 1.80mm
- Packaging: Tray
- Pitch - Mating Interface: 4.20mm
- Durability (Mating Cycles Max): 30
- Shrouded: Yes
- Stackable: Yes
- Surface Mount Compatible: No
- Glow-Wire Capable: No
- Certification: CSA, UL
- RoHS Compliant: Yes
Buy the Buy Molex Mini-Fit BMI Part Number 15246103 Online
Purchase the Molex Mini-Fit BMI Connector online today for durable, high-current power and signal connections suitable for board-to-board applications. Its robust nylon body, gold-plated brass contacts, and right-angle design make it ideal for various electronic projects requiring reliable mating and environmental safety. With 10 circuits supporting up to 13A at 600V, this connector offers excellent performance for power distribution in industrial, automotive, and consumer devices. Experience convenience, quality, and safety by ordering now for fast delivery and seamless integration into your designs.
Order your Molex Series15246103 high-current connector today and ensure your power and signal connections are secure, reliable, and compliant with industry standards.
Frequently Asked Questions
Where can I buy MOLEX 15246103?
You can click on the BUY or RFQ button to purchase 15246103 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15246103?
You can download the 15246103 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15246103?
MOLEX
