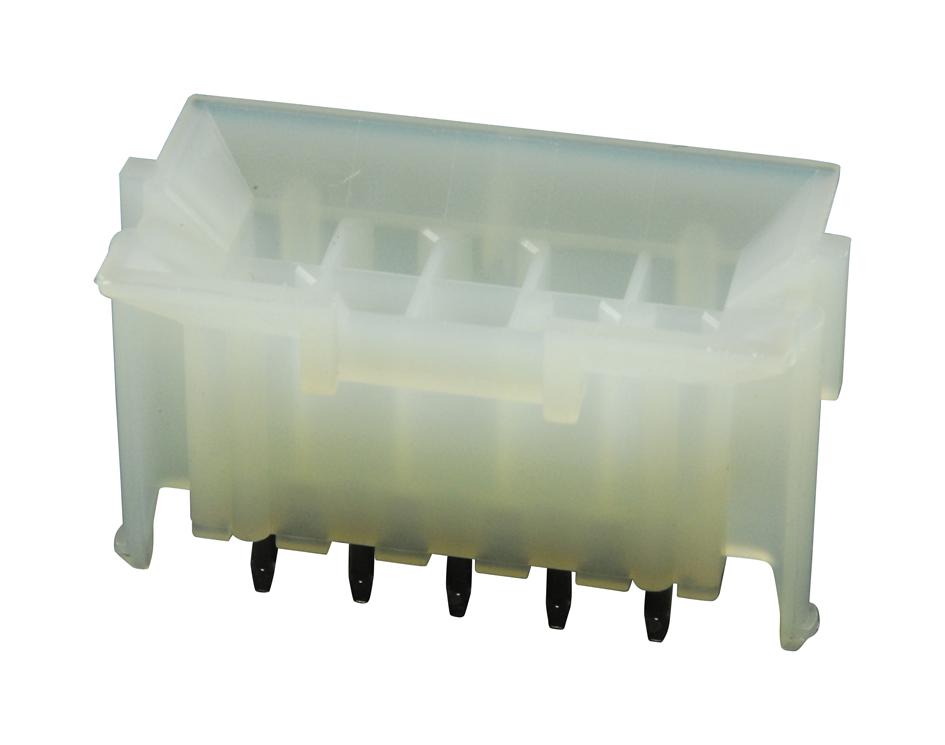

MOLEX 15246181 Mini-Fit BMI Connector
The Mini-Fit BMI Header is a high-quality connector with a 4.20mm pitch, dual-row vertical design, and snap-in plastic peg PCB lock. Constructed from PA Polyamide Nylon 6/6 with UL 94V-2 flammability rating, it features tin-plated brass contacts for reliable current handling up to 13A per circuit and voltage up to 600V. Suitable for board-to-board and wire-to-board applications, it offers 18 circuits, robust durability up to 30 mating cycles, and is RoHS compliant. Its vertical orientation and easy PCB retention make it ideal for power and application-specific systems.
MOLEX 15246181 Mini-Fit BMI Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 18
- Maximum Current per Circuit: 13A
- Maximum Voltage: 600V
- Material - Resin: PA Polyamide Nylon 6/6
- Plating - Mating: Tin, 2.540um min.
- Plating - Termination: Tin, 2.540um min.
- Flammability: UL 94V-2
- Durability (Mating Cycles): Up to 30 cycles
- Orientation: Vertical
- PC Tail Length: 3.56mm
- Temperature Range: -40°C to +105°C
- PCB Thickness - Recommended: 1.80mm
- Lock to Mating Part: Yes
- Guide to Mating Part: Yes
- RoHS, UL, CSA certified
- Surface Mount Compatible: No
- Shrouded Partial: Yes
- Polarized to Mating Part: Yes
- Color - Resin: Natural
Buy the Molex Series Mini-Fit BMI Connector: 15246181
Purchase the Molex Mini-Fit BMI Connector 15246181 online today. Featuring a 4.20mm pitch, dual-row vertical design, and tin-plated contacts, this connector is engineered for power and application-specific systems. It supports up to 13A per circuit and 600V, ensuring reliable performance in demanding electrical environments. Crafted from flame-retardant UL 94V-2 rated nylon, it offers high durability with up to 30 mating cycles. RoHS compliant and easy to install, this connector provides excellent reliability and efficiency for your electrical projects.
Get Molex Mini-Fit BMI Connector 15246181 today—designed for reliable power transfer and long-lasting durability in your electrical systems.
Frequently Asked Questions
Where can I buy MOLEX 15246181?
You can click on the BUY or RFQ button to purchase 15246181 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15246181?
You can download the 15246181 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15246181?
MOLEX
