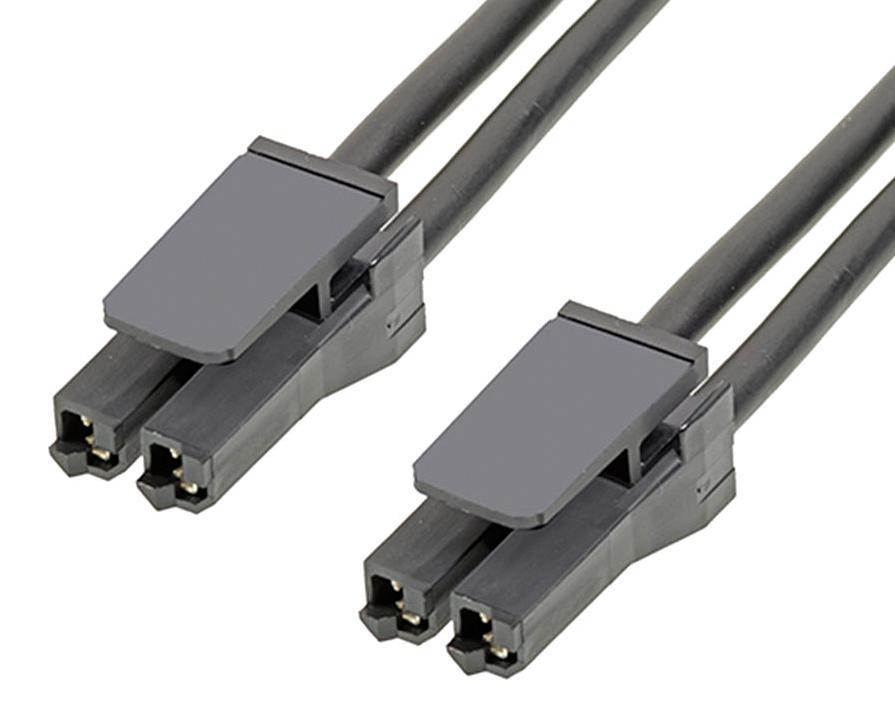

MOLEX 2160101022 Datasheet & Stock

The 216010 series Super Sabre-to-Super Sabre off-the-shelf (OTS) cable assemblies are designed to deliver a current rating of 34A per blade and withstand voltages up to 600V. They are tailored for high-current and high-voltage applications with a low-profile design, providing a cost-effective alternative to gold-plated terminals by utilizing silver-plated, high-conductivity alloy terminals suitable for 10 to 12 AWG wires. These assemblies feature a flat-blade terminal design with four independent electrical contact points, ensuring reliable connectivity. Fully isolated terminals on both sides protect against damage and shock. The assemblies are rated for operating temperatures up to +105°C, comply with USCAR-2 level 3, and are certified for safety standards including UL1977 and UL60950, with UL and CSA certification files. The nylon housing and copper contacts contribute to durability and performance in various industrial, automotive, consumer, medical, and telecommunications applications.

View 2160101022Datasheet [pdf]
