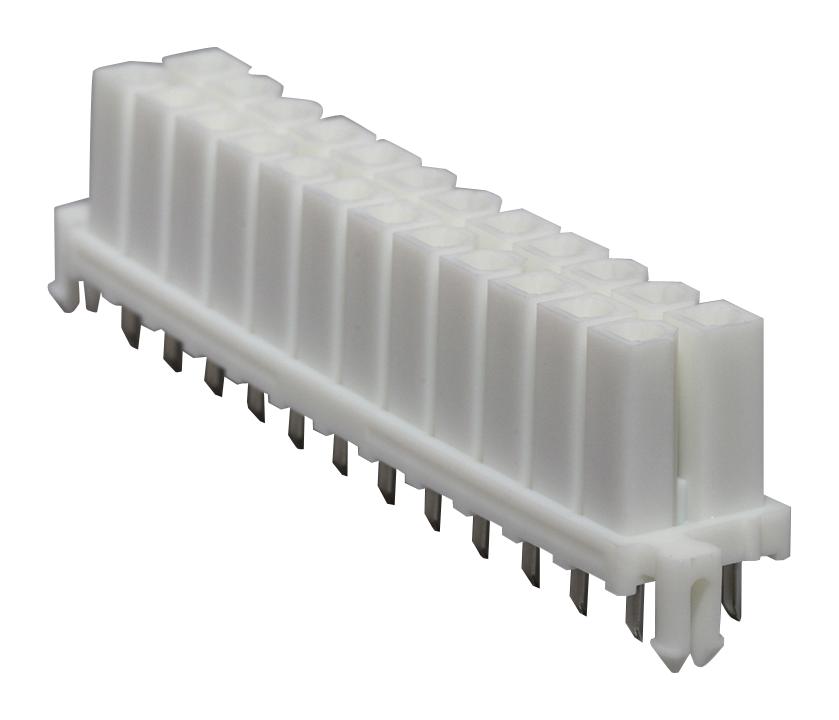

MOLEX 15247241 Power Receptacle Connector
The Mini-Fit BMI Receptacle Header is a reliable 24-circuit connector designed for board-to-board power applications. Featuring a 4.20mm pitch, dual-row configuration, and vertical orientation, it includes snap-in plastic pegs for secure mating. Constructed with brass and tin-plated for durability, it is UL 94V-0 rated and RoHS compliant. Suitable for operating temperatures from -40°C to +105°C, it supports current loads up to 9.0A per contact and a maximum voltage of 600V AC/DC. Ideal for industrial, electrical, and electronic manufacturing, providing robust connections for power distribution and automation systems.
MOLEX 15247241 Power Receptacle Connector Specifications:
- Number of Circuits: 24
- Pitch: 4.20mm
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Resin: Nylon
- Color - Resin: Natural (White)
- Durability: Up to 30 mating cycles
- Flammability: UL 94V-0
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V AC/DC
- Assembly: Through Hole, Solder Type with Pegs
- Orientation: Vertical
- PCB Thickness - Recommended: 1.20mm
- Net Weight: 4.884 grams
- Lock to Mating Part: Yes
- Guide to Mating Part: Yes
- RoHS Compliant
Buy the Molex 0015247241 – Reliable Power Connector for Industrial Applications
Secure your electronic and industrial power connections with the Molex Power Receptacle Connector. Designed for durability and high performance, it features a 4.20mm pitch, 24 circuits, and a vertical dual-row layout. Crafted from brass with tin plating, this UL 94V-0 rated component ensures safety and longevity in demanding environments. Suitable for operating temperatures from -40°C to +105°C, supporting up to 9A per contact and 600V maximum voltage. Easy to install with through-hole soldering and reliable locking features, ideal for automation, industrial machinery, and electrical systems.
Buy Molex 0015247241 now and experience unmatched reliability and performance in power distribution and electronic assembly.
Frequently Asked Questions
Where can I buy MOLEX 15247241?
You can click on the BUY or RFQ button to purchase 15247241 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15247241?
You can download the 15247241 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15247241?
MOLEX
