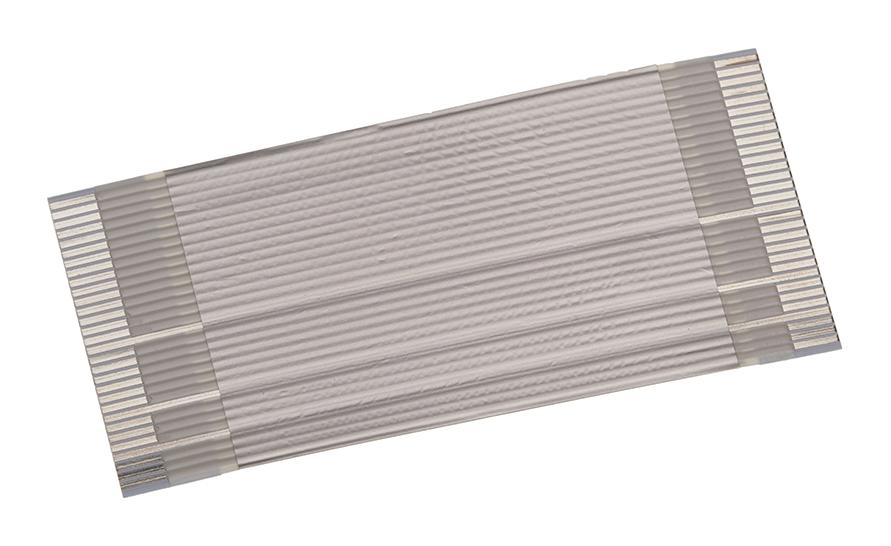

MOLEX 153660109 Premo-Flex FFC Jumper
The MOLEX 15366-0109 Premo-Flex FFC jumper is a versatile connector designed for flat flex cable applications. With a 0.50mm pitch and 10 circuits, it provides a compact and reliable connection solution. The tin plating ensures excellent solderability and corrosion resistance, while the 203mm cable length offers flexibility in routing and assembly. This jumper is commonly used in consumer electronics, automotive, and industrial equipment where space is limited and flexible connections are required.
MOLEX 153660109 Premo-Flex FFC Jumper Specifications:
- product_family: Cable
- series: 15366
- crimp_quality_equipment: Yes
- overview: FFC Cable Jumpers, Premo-Flex Flat-Flexible Cable Jumpers
- product_name_short: Premo-Flex FFC Jumper
- upc: 193264621477
- cable_length: 203.00mm
- circuits_loaded: 10
- contact_layout_type: A (same side)
- plating_mating: Tin
- packaging_type: Bag
- pitch_mating_interface: 0.50mm
- operating_temperature_range: -40° to +105°C
- wire_size_awg: N/A
- wire_cable_type: Flat Flex Cable
- current_maximum_per_contact: 0.5A
- voltage_maximum: N/A
- material_info: N/A
- drawing_number: 153660001-000
- product_specification: 153660001-001
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free: Not Low-Halogen
- rohs_phthalates: Not Contained
- mates_with: Easy-On FFC/FPC Connector 527451033, 527461033, 525591033
Buy the 15366-0109 MOLEX Premo-Flex FFC Jumper | myMectronic
Purchase the MOLEX 15366-0109 Premo-Flex FFC Jumper securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 153660109?
You can click on the BUY or RFQ button to purchase 153660109 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 153660109?
You can download the 153660109 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 153660109?
MOLEX
