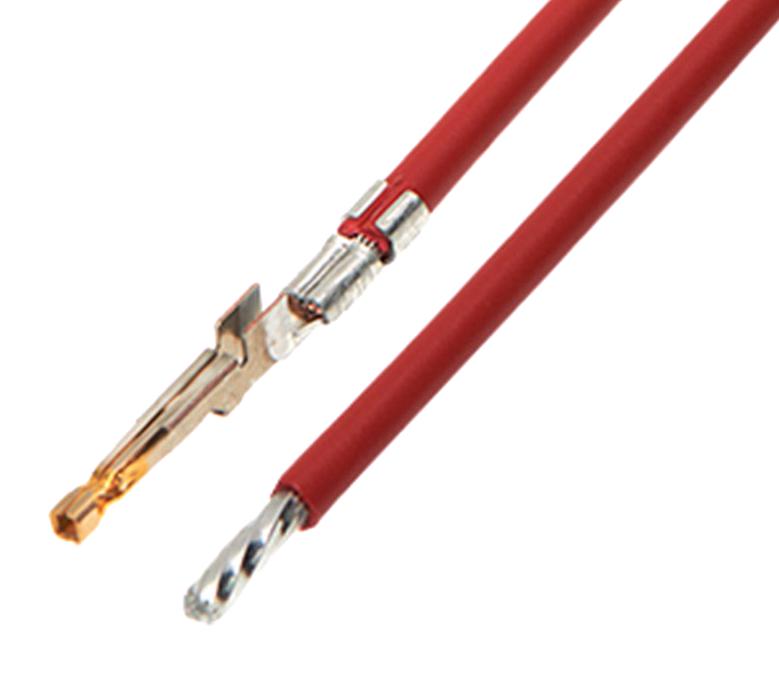

MOLEX 2174712223 Power Cable Assembly
The Molex 217471 series pre-crimped female-to-pigtail cable assembly offers a reliable, cost-effective solution for prototyping and mass production. Featuring a 225 mm length, 16 AWG wire size, and a red resin housing, it includes high-conductivity copper contacts with gold plating for excellent electrical performance. Rated for 600V AC/DC and 12A per contact, this UL 1061 certified cable simplifies the assembly process, reduces time to market, and ensures compatibility with various Molex connectors. It is ideal for power and wiring applications requiring quick, secure connections.
MOLEX 2174712223 Power Cable Assembly Specifications:
- Cable Length: 225.00mm
- Wire Size: 16 AWG
- Wire Insulation Diameter: 2.03-2.39mm
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Gold
- Color - Resin: Red
- Material Info: UL 1061 rated
- Maximum Voltage: 600V AC/DC
- Maximum Current: 12.0A
- Termination Interface Style: Crimp or Compression
- Application: Power, Wire-to-Board
- Packaging Type: Bag
- Gender: Female-Pigtail
- Connector Application: Assembly to connector
- Product Family: Power Wire Assemblies
- Series: 217471
Buy the Molex Series 217471 Power Cable: 225mm 16 AWG Red Female-to-Pigtail
Enhance your electrical projects with the Molex Series 217471 power cable assembly. This 225mm red female-to-pigtail connector features gold-plated high-conductivity copper contacts, rated for 600V and 12A. Its robust design ensures secure, efficient power connections suitable for prototyping and mass production. Pre-crimped and tested for quality, this UL 1061 rated cable simplifies assembly, saves time, and offers versatile application compatibility. Purchase online today for reliable performance and seamless integration into your electrical systems.
Order your Molex Series 217471 power cable today and ensure reliable, quick-connection wiring solutions for your production or prototyping needs.
Frequently Asked Questions
Where can I buy MOLEX 2174712223?
You can click on the BUY or RFQ button to purchase 2174712223 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2174712223?
You can download the 2174712223 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2174712223?
MOLEX
