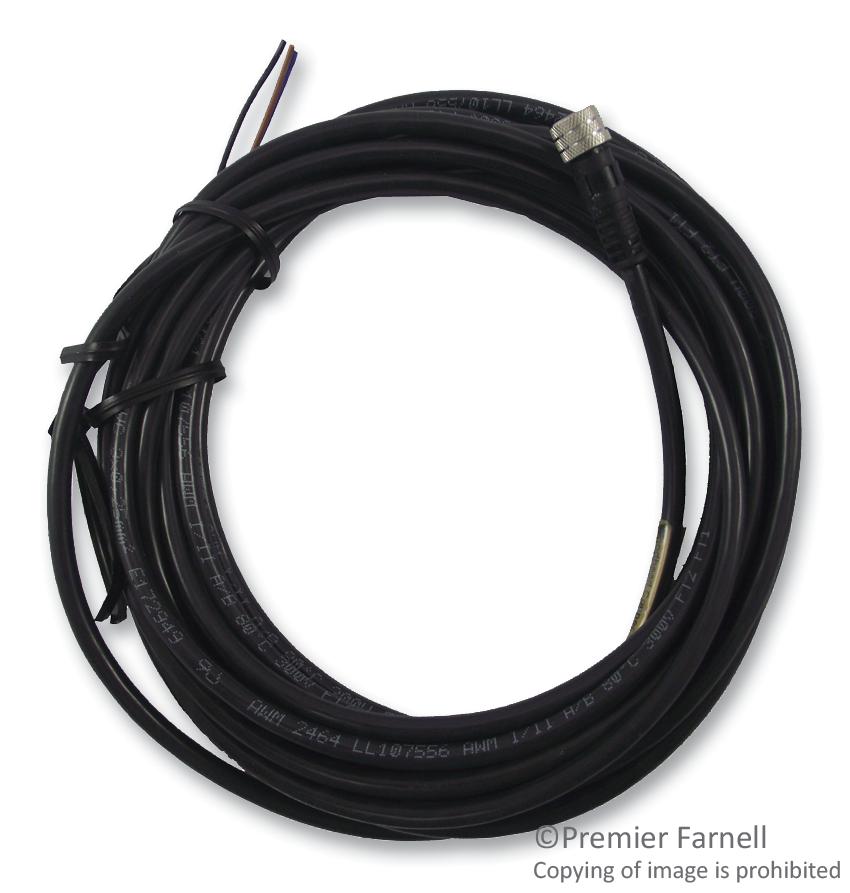

MOLEX 403000E02M050 Nano-Change M8 Cordset
The Nano-Change M8 Single-Ended Cordset by Molex offers a robust and compact solution for industrial connectivity. Featuring a female straight connector and pigtail design, it employs a 0.25mm² PVC cable, measuring 5.0 meters in length. With an IP67 rating for dust and water resistance, it is suitable for harsh environments. The cordset's materials include nickel-plated brass and copper alloy contacts, with a black PVC jacket. It operates within -25°C to +80°C and meets UL 2464 electrical standards. Ideal for automated systems and industrial control applications.
MOLEX 403000E02M050 Nano-Change M8 Cordset Specifications:
- Cable Diameter: 4.70mm (.185")
- Cable Length: 5.0m (16.40')
- Cable Material: PVC
- Material - Connector Body: Nickel-plated Brass
- Material - Contact: Copper Alloy
- Type: Single Ended Cordset
- Poles: 3
- Gender: Female-Pigtail
- Connection End A: Female (Straight)
- Body Material: Nickel-plated Brass
- IP Rating: IP67
- Operating Temperature Range: -25°C to +80°C
- Current - Maximum: 3A
- Voltage - Maximum: 30V
- RoHS, REACH SVHC compliant
- Electrical Standard: UL 2464
- Color - Cable Jacket: Black
Buy the Buy Molex Nano-Change M8 Part Number 403000E02M050 Online
Purchase the Molex Nano-Change M8 single-ended cordset online to enhance your industrial automation or control system setup. This high-quality, IP67-rated cordset features a female straight connector and pigtail, with a 5-meter PVC cable that withstands tough environmental conditions. Its nickel-plated brass and copper alloy contacts ensure excellent conductivity and durability. Certified under UL 2464, it operates from -25°C to +80°C, making it suitable for a range of industrial applications requiring reliable, secure connections in demanding environments. Easy to integrate and long-lasting.
Order your Molex Nano-Change M8 series 403000E02M050 today and ensure reliable industrial connectivity with this durable, IP67 rated cordset designed for harsh environments.
Frequently Asked Questions
Where can I buy MOLEX 403000E02M050?
You can click on the BUY or RFQ button to purchase 403000E02M050 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 403000E02M050?
You can download the 403000E02M050 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 403000E02M050?
MOLEX
