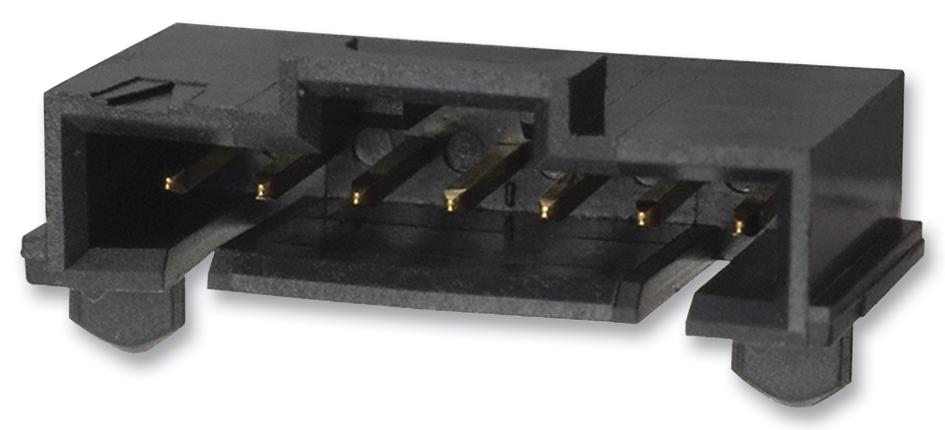

MOLEX 15912125 Wire-to-Board Connector
The 2.54mm pitch SL Wire-to-Board Header is a low-profile, surface-mount connector designed for high reliability connections in electronic assemblies. It features a shrouded, right-angle configuration with a 3.05mm pocket and press-fit plastic peg for secure mounting. With 12 circuits, this connector boasts 0.38 um gold selective plating and tin PC tail plating for excellent conductivity and corrosion resistance. Suitable for PCB applications, it supports up to 3.0A current per contact and operates within -40°C to +105°C, ensuring durability and consistent performance.
MOLEX 15912125 Wire-to-Board Connector Specifications:
- Pitch - Mating Interface: 2.54mm
- Number of Circuits: 12
- Current - Max per Contact: 3.0A
- Voltage - Max: 250V
- Operating Temperature Range: -40°C to +105°C
- Material - Metal: Brass, Phosphor Bronze
- Plating Mating: Gold, 0.38 um
- Plating Termination: Tin
- Resin: High Temperature Thermoplastic
- Durability (mating cycles max): Not specified
- Orientation: Right Angle
- Shrouded: Yes
- PCB Thickness - Recommended: 1.60mm
- Lock to Mating Part: Yes
- Polarity: Polarized to Mating Part and PCB
- RoHS Compliant: Yes
- UL/CSA Certified: Yes
Buy the Molex Series SL Wire-to-Board Connector: 0015912125
Purchase the Molex Series SL Wire-to-Board Connector now to secure reliable, high-performance connections for your electronic assemblies. With a 2.54mm pitch, 12 circuits, gold plating, and a surface-mount design, this connector provides excellent conductivity and corrosion resistance. Its right-angle, shrouded profile with press-fit peg ensures a secure fit and easy assembly. Designed for durability to withstand -40°C to +105°C, it supports up to 3.0A per contact, making it ideal for various industrial and electronic applications. Order online today and optimize your design quality.
Order your Molex Series SL Wire-to-Board Connector today and ensure your electronic projects have dependable, high-quality connections with proven reliability.
Frequently Asked Questions
Where can I buy MOLEX 15912125?
You can click on the BUY or RFQ button to purchase 15912125 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15912125?
You can download the 15912125 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15912125?
MOLEX
