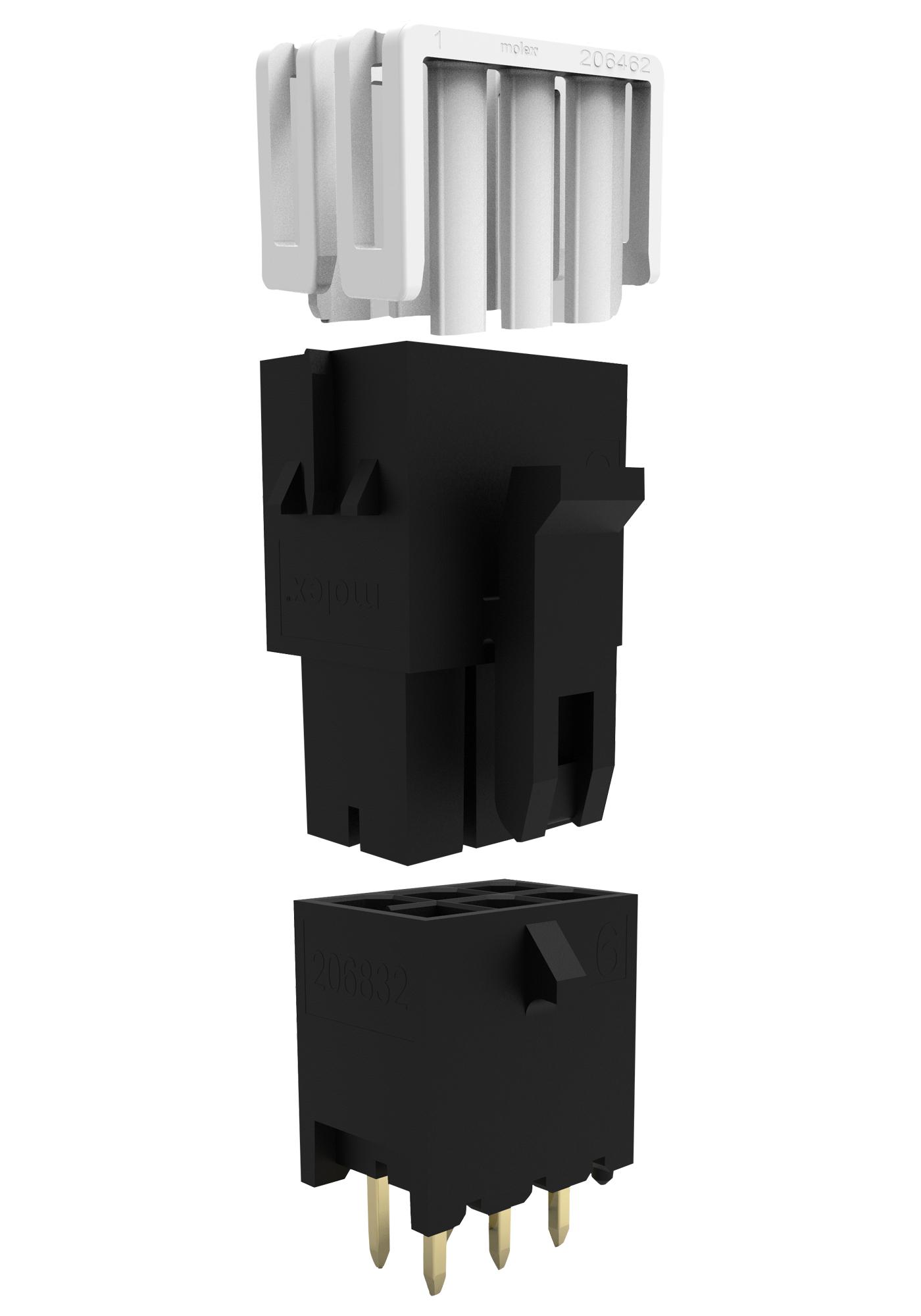

MOLEX 2068320401 Micro-Fit Power Header
The Micro-Fit+ Vertical Header with a 3.00mm pitch is a dual-row connector featuring 4 circuits with tin over nickel plating, suitable for wire-to-board power applications. Designed for durability with UL 94V-0 and glow-wire capability, it is constructed from high copper alloy and liquid crystal polymer for excellent electrical performance. Operating from -40°C to +105°C, it supports a maximum current of 12.5A per contact and voltage of 600V AC/DC. This compact, shrouded connector ensures secure mating and easy PCB integration, ideal for industrial and power distribution uses.
MOLEX 2068320401 Micro-Fit Power Header Specifications:
- Pitch: 3.00mm
- Number of Rows: 2
- Circuits: 4
- Material - Metal: High Copper Alloy
- Material - Plating Mating: Tin over Nickel
- Material - Resin: Liquid Crystal Polymer
- Color - Resin: Black
- Electrical Current - Max: 12.5A per contact
- Voltage - Max: 600V AC/DC
- Temperature Range: -40°C to +105°C
- Durability (Mating Cycles): 25
- Glow-Wire Capable: Yes
- Lock to Mating Part: None
- Termination Interface Style: Through Hole
- Net Weight: 0.556g
Buy the Buy Molex Micro-Fit+ Part Number 2068320401 Online
Purchase the Molex Micro-Fit+ power connector with 3.00mm pitch, 4 circuits, and UL 94V-0 flame rating to guarantee safe and durable power connections. Ideal for industrial and electronic projects, it features tin over nickel plating, high copper alloy construction, and liquid crystal polymer resin for excellent electrical and thermal performance. Operating from -40°C to +105°C, it supports up to 12.5A per contact and 600V, ensuring efficient power distribution in tight spaces. Buy online today for reliable, high-quality wiring solutions.
Order your Molex Series206832 2068320401 vertical connector today and ensure reliable power connections with our high-quality, compact design suitable for industrial wiring.
Frequently Asked Questions
Where can I buy MOLEX 2068320401?
You can click on the BUY or RFQ button to purchase 2068320401 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2068320401?
You can download the 2068320401 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2068320401?
MOLEX
