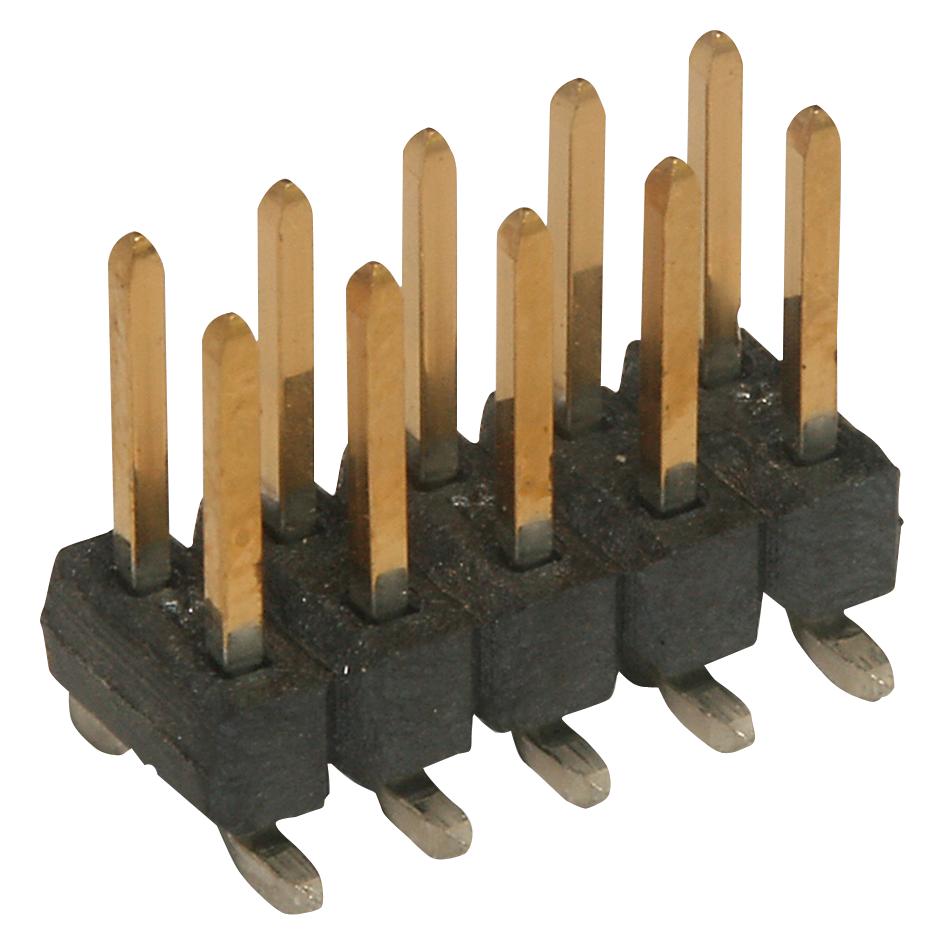

MOLEX 15912160 C-Grid Connector
This 2.54mm pitch C-Grid header is a surface-mount, dual-row connector designed for board-to-board applications. It features a tin (Sn) plating with no PCB locator pegs, offering reliable electrical performance with a maximum rating of 3.0A and 250V. The high-temperature thermoplastic housing ensures durability from -40°C to +105°C. Its stackable and shrouded design provides secure connections in various electronic assemblies. Suitable for applications requiring high vibration resistance and easy reflow soldering, this connector ensures efficient and dependable interconnections for modern electronic systems, compliant with RoHS standards.
MOLEX 15912160 C-Grid Connector Specifications:
- Pitch - Mating Interface: 2.54mm
- Number of Rows: 2
- Circuits (Loaded): 16
- Circuits (Maximum): N/A
- Color - Resin: N/A
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability (mating cycles max): N/A
- Temperature Range - Operating: -40° to +105°C
- Lock to Mating Part: No
- Net Weight: 0.986g
- Orientation: Vertical
- Shrouded: Yes
- Stackable: Yes
- Flammability: UL 94V-0
- Agency Certification: CSA, UL
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 250V
- Process Temperature Max.: 245°C
- Solder Process Data: Reflow Process, Max. 003 cycles
Buy the Buy Molex C-Grid Connector Part Number 15912160 Online
Secure your electronic projects with the Molex C-Grid Connector, Part Number 15912160. This 2.54mm pitch, surface-mount, dual-row connector is designed for durability and reliable connections in board-to-board applications. It supports up to 3.0A and 250V, with a temperature range from -40°C to +105°C. The connector's tin plating and high-temperature thermoplastic housing make it ideal for reflow soldering and various demanding environments, ensuring your assembly maintains high performance over time. Buy online now for fast delivery and dependable quality.
Order your Molex Series71308 15912160 surface-mount dual-row connector today and ensure secure, reliable electronic connections with proven quality.
Frequently Asked Questions
Where can I buy MOLEX 15912160?
You can click on the BUY or RFQ button to purchase 15912160 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15912160?
You can download the 15912160 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15912160?
MOLEX
