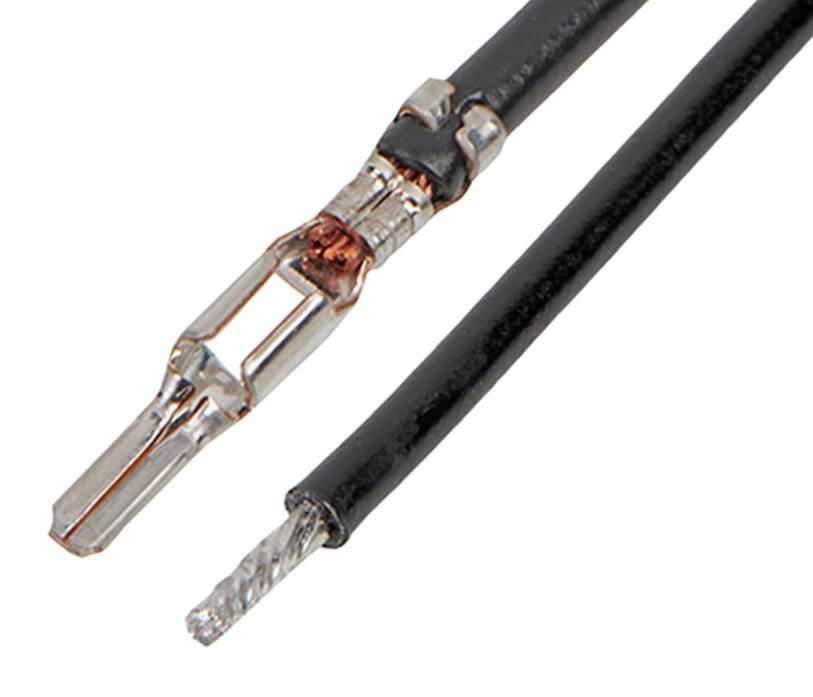

MOLEX 2178431121 Mizu-P25 Pre-Crimped Lead
The MOLEX 217843-1121 is a pre-crimped lead assembly offering a convenient and reliable connection solution for Mizu-P25 male-to-pigtail applications. This assembly simplifies integration by eliminating the need for on-site crimping, reducing assembly time and potential errors. The tin plating ensures excellent conductivity and corrosion resistance, while the 20 AWG wire provides adequate current carrying capacity for signal transmission. It is ideal for wire-to-wire signal applications in various industrial and commercial settings.
MOLEX 2178431121 Mizu-P25 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: Mizu-P25-to-Pigtail
- cable_length: 75.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 0.628/g
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.40-1.90mm
- wire_size_awg: 20
- wire_cable_type: UL 10002
- voltage_maximum: 125V
- upc: 195842150065
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
