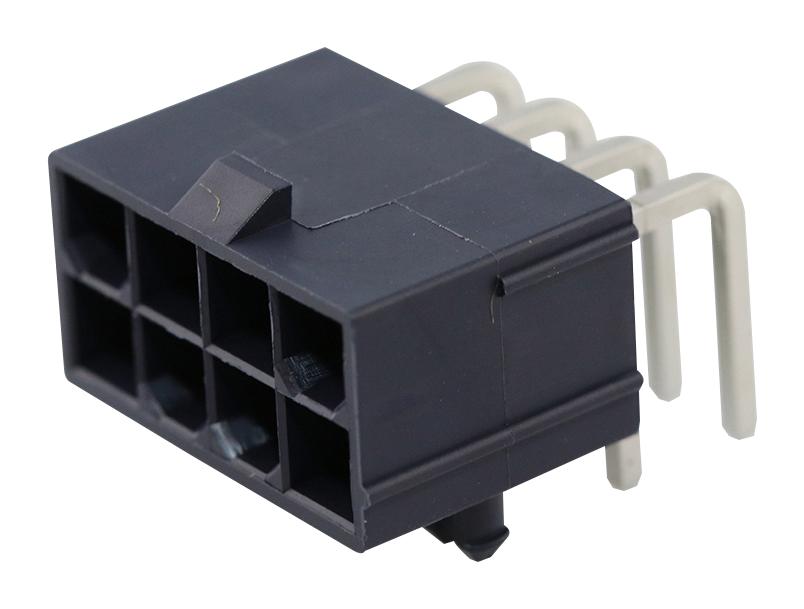

MOLEX 1724480008 Power Connector Header
The MOLEX 1724480008 Mini-Fit Jr. power connector header is a robust solution for secure wire-to-board connections. Designed with a right-angle orientation and 8 circuits, this header is ideal for applications requiring space-saving and efficient power distribution. The tin plating ensures excellent conductivity and corrosion resistance, while the polyamide nylon 6/6 94V-2 resin provides durability and flame retardancy. It is compatible with the 46992 Mini-Fit Jr. Receptacle and offers a reliable mating solution for various industrial and consumer electronics applications.
MOLEX 1724480008 Power Connector Header Specifications:
- product_family: 172448
- series: Mini-Fit Jr. Power Connectors
- upc: 887191729169
- circuits_loaded: 8
- circuits_maximum: 8
- color_resin: Black
- durability_mating_cycles: 30
- first_mate_last_break: No
- flammability: 94V-2
- glow_wire_capable: Yes
- guide_to_mating_part: None
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin (Sn)
- material_resin: Nylon 6/6 94V-2
- net_weight_g: 3.085
- number_of_rows: 2
- orientation: Right Angle
- pc_tail_length_mm: 3.60
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended_mm: 1.78
- packaging_type: Tray
- pitch_mating_interface_mm: 4.20
- pitch_termination_interface_mm: 4.20
- plating_min_mating_um: 0.762
- plating_min_termination_um: 0.762
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Fully
- stackable: No
- smc_compatible: No
- operating_temperature_range_c: -40° to +105°
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- current_max_per_contact_a: 13.0
- voltage_max_v: 600
- process_temp_max_c: 220
- leadfree_process_capability: WAVE
- max_cycles_at_max_process_temp: 001
- duration_at_max_process_temp_s: 005
- termination_interface_style: Through Hole
