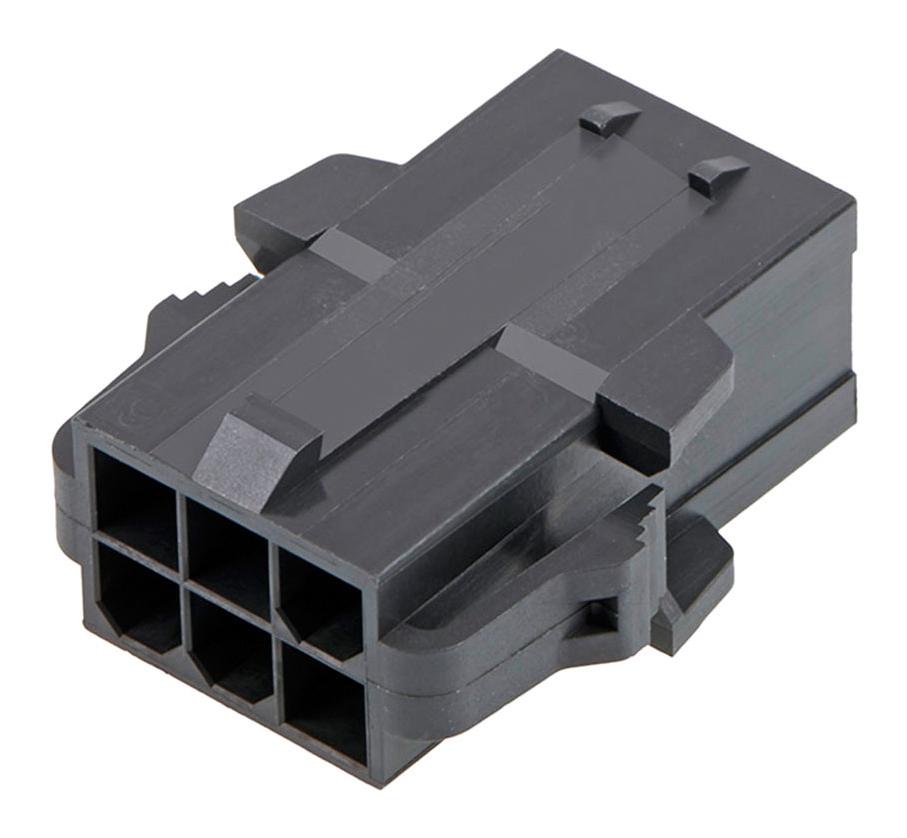

MOLEX 1727673016 Mini-Fit Sigma Plug Housing
The 172767 series is a 4.20mm pitch, dual-row Mini-Fit Sigma plug housing suitable for panel mounting applications. Constructed from UL 94V-0 rated black nylon, it is glow-wire capable, ensuring flame resistance and safety. Compatible with Mini-Fit Sigma receptacle housing, it is polarized for correct mating. Designed for reliable power and signal connections, it supports up to 16 circuits and operates from -40°C to +105°C. This high-quality connector promotes ease of assembly and durability in various industrial electrical systems.
MOLEX 1727673016 Mini-Fit Sigma Plug Housing Specifications:
- Pitch - Mating Interface: 4.20mm
- Number of Circuits: 16
- Color - Resin: Black
- Material - Resin: Nylon
- Glow-Wire Capable: Yes
- Panel Mount: Yes
- Temperature Range - Operating: -40°C to +105°C
- Gender: Plug
- Lock to Mating Part: Yes
- Net Weight: 5.460 grams
- Packaging Type: Bag
- Reference - Drawing Numbers: 2131370000-AS-000, 1727670002-PK-000
- RoHS Compliant: Yes
Buy the Molex Series Mini-Fit Sigma Plug Housing: 1727673016
Purchase the Molex Mini-Fit Sigma plug housing 1727673016 online today for high-performance power connections. Designed with a 4.20mm pitch, dual-row configuration, and UL 94V-0 flame-resistant nylon, it ensures safety and durability in demanding industrial environments. The polarized, glow-wire capable design facilitates proper mating and reliability, supporting up to 16 circuits across a temperature range of -40°C to +105°C. Perfect for panel mounting applications, this connector offers easy assembly and long-lasting performance in your electrical systems.
Buy Molex Mini-Fit Sigma 1727673016 now and experience unmatched reliability and performance in power connection solutions.
Frequently Asked Questions
Where can I buy MOLEX 1727673016?
You can click on the BUY or RFQ button to purchase 1727673016 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1727673016?
You can download the 1727673016 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1727673016?
MOLEX
