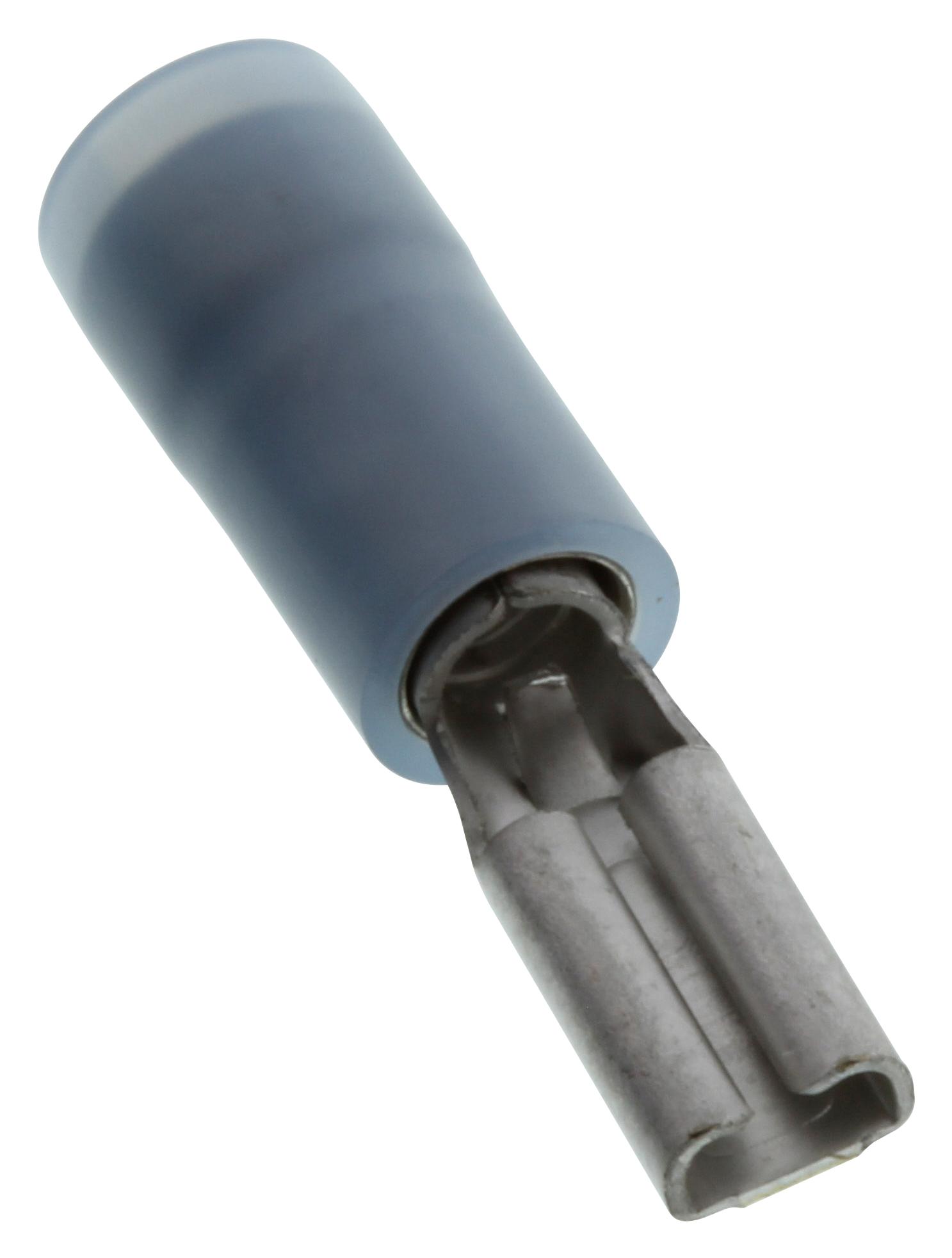

MOLEX 190190022 Quick Disconnect Terminal
The Avikrimp Quick Disconnect Female terminal is designed for 14-16 AWG wires, featuring a nylon insulation with a blue resin color. It provides reliable crimp and secure locking to mating parts, suitable for applications requiring a maximum voltage of 300V. With a compact design measuring 2.79mm by 0.51mm, it complies with RoHS and halogen-free standards, and is UL and CSA certified. Ideal for use in electronic and electrical systems, this terminal ensures robust electrical connectivity with a temperature range from -65°C to +105°C, making it suitable for various industrial and electronic projects.
MOLEX 190190022 Quick Disconnect Terminal Specifications:
- Wire Range: 14-16 AWG
- Wire Diameter: 1.30-2.00 mm
- Maximum Voltage: 300V
- Temperature Range: -65°C to +105°C
- Material - Metal: Brass
- Material - Plating: Tin
- Insulation Material: Nylon (PA)
- Color - Resin: Blue
- Flammability: 94V-2
- Dimensions: 2.79mm (Tab Width) x 0.51mm (Tab Thickness)
- Lock to Mating Part: No
- Insulation: Nylon, RoHS and halogen-free
- Certifications: UL Listed, CSA Certified
- Status: Active, RoHS Compliant, Halogen-Free
- Packaging: Bag
- Application: Electrical connections, electronic assembly
Buy the Molex Series Avikrimp Quick Disconnect Female: 0190190022
Purchase the Molex Series Avikrimp Quick Disconnect Female terminal now for dependable, high-quality electrical connectivity. Suitable for 14-16 AWG wires, it features nylon insulation in blue, rated up to 300V, with a temperature tolerance from -65°C to +105°C. UL and CSA certified, RoHS compliant, and halogen-free, this terminal ensures safe, durable, and efficient connections in electronic systems. Ideal for industrial, automation, and wiring applications, it provides a secure and reliable connection with easy installation and high-performance standards for professional projects.
Order your Molex Series Avikrimp Quick Disconnect Female terminal today and secure reliable connections for your electronic and electrical projects.
Frequently Asked Questions
Where can I buy MOLEX 190190022?
You can click on the BUY or RFQ button to purchase 190190022 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 190190022?
You can download the 190190022 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 190190022?
MOLEX
