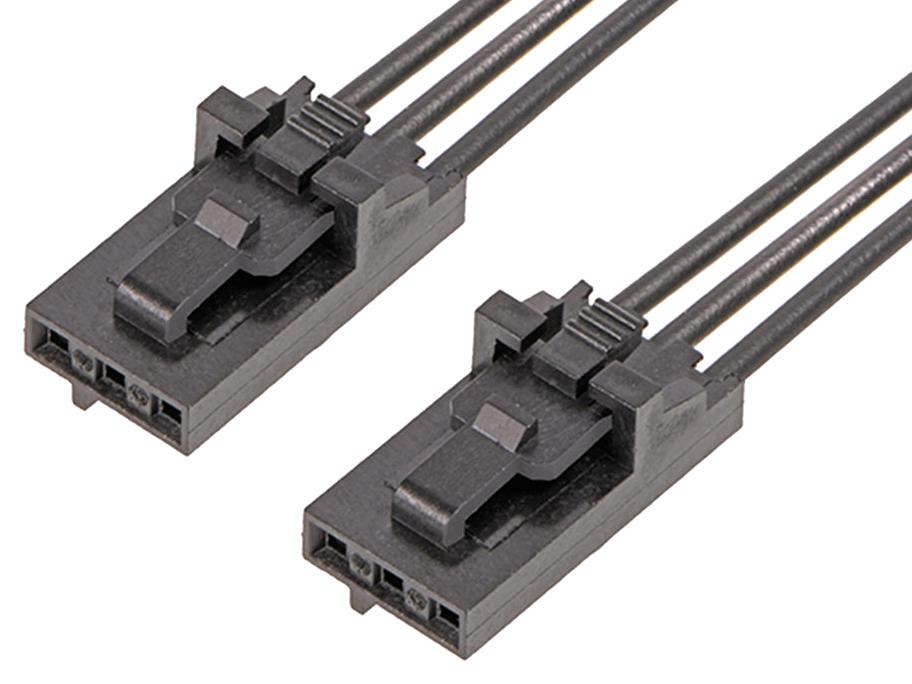

MOLEX 2162701031 Female-to-Female Cable Assembly
The off-the-shelf stackable linear female-to-female cable assembly supports diverse connection styles including crimp, FFC, and IDT. With a positive-lock mechanism, it ensures secure mating in high-vibration environments, preventing back-out with a terminal position lock. Its low-profile, stackable design includes vertical and right-angle headers, offering flexible integration. Made from polyester alloy with phosphor bronze contacts, tin-plated for durability. The assembly operates at 600V, handles 3A, and withstands temperatures from -40°C to +105°C, suitable for electronics, industrial, automotive, medical, and telecom applications, with up to 25 connection cycles.
MOLEX 2162701031 Female-to-Female Cable Assembly Specifications:
- Connector Type: Female-to-Female
- Length: 100.00mm
- Circuits: 3
- Color: Black
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 2.735 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface Style: Crimp, Compression
- Wire Insulation Diameter: Max 1.63mm
- Wire Size: 22 AWG
- Electrical Current - Max per Contact: 3.0A
- Voltage - Max: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 25 connection cycles
Buy the Molex Series SL Female-to-Female Cable Assembly: 2162701031
Purchase the Molex female-to-female cable assembly online for reliable, vibration-resistant connections suitable for electronics, automotive, medical, and industrial uses. Featuring a positive lock for secure mating, versatile termination options including crimp, FFC, and IDT styles, and constructed with durable materials like polyester alloy and phosphor bronze with tin plating. Designed to operate up to 600V and 3A, it withstands temperatures from -40°C to +105°C. Ideal for spaces demanding high durability and multiple connection cycles, simplifying installation and ensuring long-term performance.
Get Molex 2162701031 today—built for secure, high-vibration environments with versatile connection options.
Frequently Asked Questions
Where can I buy MOLEX 2162701031?
You can click on the BUY or RFQ button to purchase 2162701031 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162701031?
You can download the 2162701031 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162701031?
MOLEX
