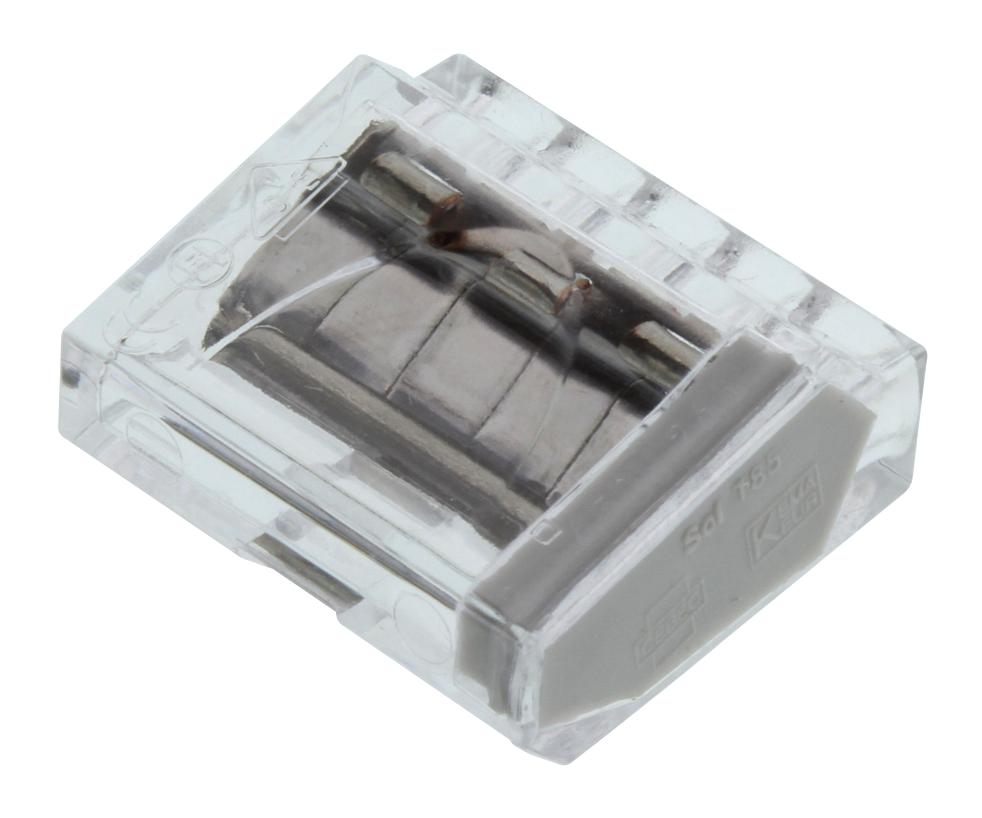

MOLEX 194300004 Wire Connector
The See and Splice 5 Circuit Push-in Wire Connector is designed for quick, reliable splicing of wires ranging from 12 to 22 AWG. Made with a durable brass body and gray resin insulation, it provides a maximum voltage rating of 600V, suitable for lighting and signage fixtures. The connector is RoHS and REACH SVHC compliant, halogen-free, and operates efficiently within a temperature range of -30°C to +105°C. Its compact design ensures secure connections, making it ideal for electrical installations requiring quick and safe wire splicing.
MOLEX 194300004 Wire Connector Specifications:
- Voltage - Maximum: 600V
- Wire Size AWG: 12, 14, 16, 18, 20, 22
- Material - Metal: Brass
- Flammability: 94V-2
- Color - Resin: Gray
- Insulation: None
- Net Weight: 3.557 grams per piece
- Packaging Type: Bag
- Temperature Range - Operating: -30°C to +105°C
- Wire Insulation Diameter: 3.30 mm (nominal O.D.)
- Barrel Type: Closed
- Agency Certification: UL
- RoHS Compliance: Yes
- REACH SVHC: Not Contained
- Halogen-Free: Yes
- Low-Halogen: Yes
Buy the Buy Molex Splices Part Number 0194300004 Online
Secure your electrical projects with the Molex Series19430 wire connector, designed for 12-22 AWG wires. Featuring a brass construction, gray resin insulation, and a maximum voltage of 600V, this connector offers reliable performance for lighting and signage fixtures. Its RoHS and REACH SVHC compliance, halogen-free design, and temperature resilience from -30°C to +105°C make it ideal for diverse electrical installations. Ensure safe, quick, and dependable wire splicing with this easy-to-use connector available for online purchase.
Order your Molex Series19430 0194300004 today and ensure quick, reliable wire splicing with a durable brass body and high-voltage efficiency.
