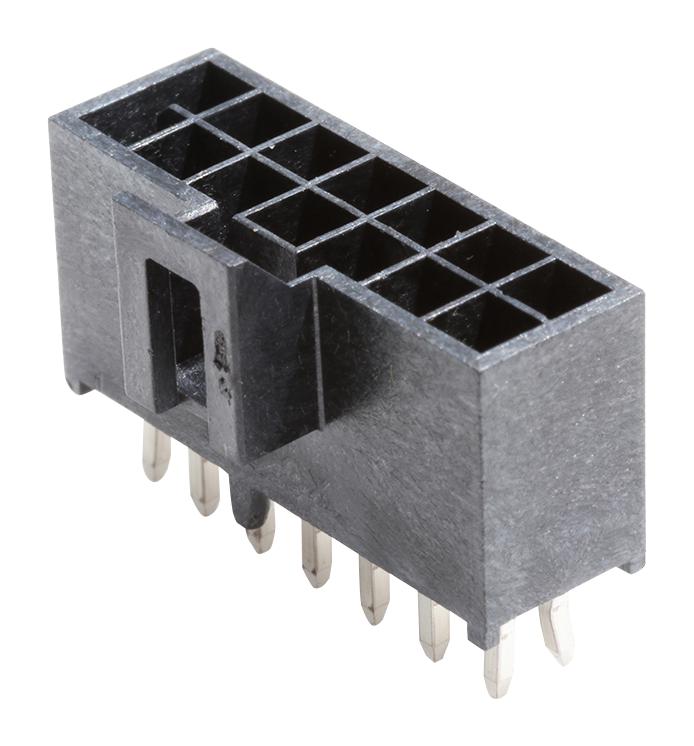

MOLEX 1053101214 Nano-Fit Power Connector
The MOLEX 105310-1214 Nano-Fit Power Connector is a through-hole vertical header ideal for power and wire-to-board applications. This connector boasts a dual-row design with 14 circuits, a 2.50mm pitch, and kinked pins for ease of use. Constructed with brass and featuring gold-over-nickel plating for mating and tin-over-nickel for termination, it ensures excellent electrical contact and durability. The connector is also glow-wire capable and polarized, enhancing its suitability for a wide range of industrial and commercial applications. It is RoHS compliant and designed for secure and efficient power transmission.
MOLEX 1053101214 Nano-Fit Power Connector Specifications:
- circuits_loaded: 14
- circuits_maximum: 14
- color_resin: Black
- durability_mating_cycles: 50
- flammability: 94V-0
- glow_wire_capable: Yes
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- plating_mating: Gold over Nickel (0.381µm min)
- plating_termination: Tin over Nickel (1.524µm min)
- material_resin: Liquid Crystal Polymer
- net_weight_g: 1.240
- number_of_rows: 2
- orientation: Vertical
- pc_tail_length_mm: 3.20
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended_mm: 1.60, 2.40
- packaging_type: Tray
- pitch_mating_interface_mm: 2.50
- pitch_termination_interface_mm: 2.50
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Yes
- stackable: No
- surface_mount_compatible: No
- current_max_per_contact_a: 6.5
- voltage_max_v: 300
- temperature_range_operating_c: -40° to +115°
