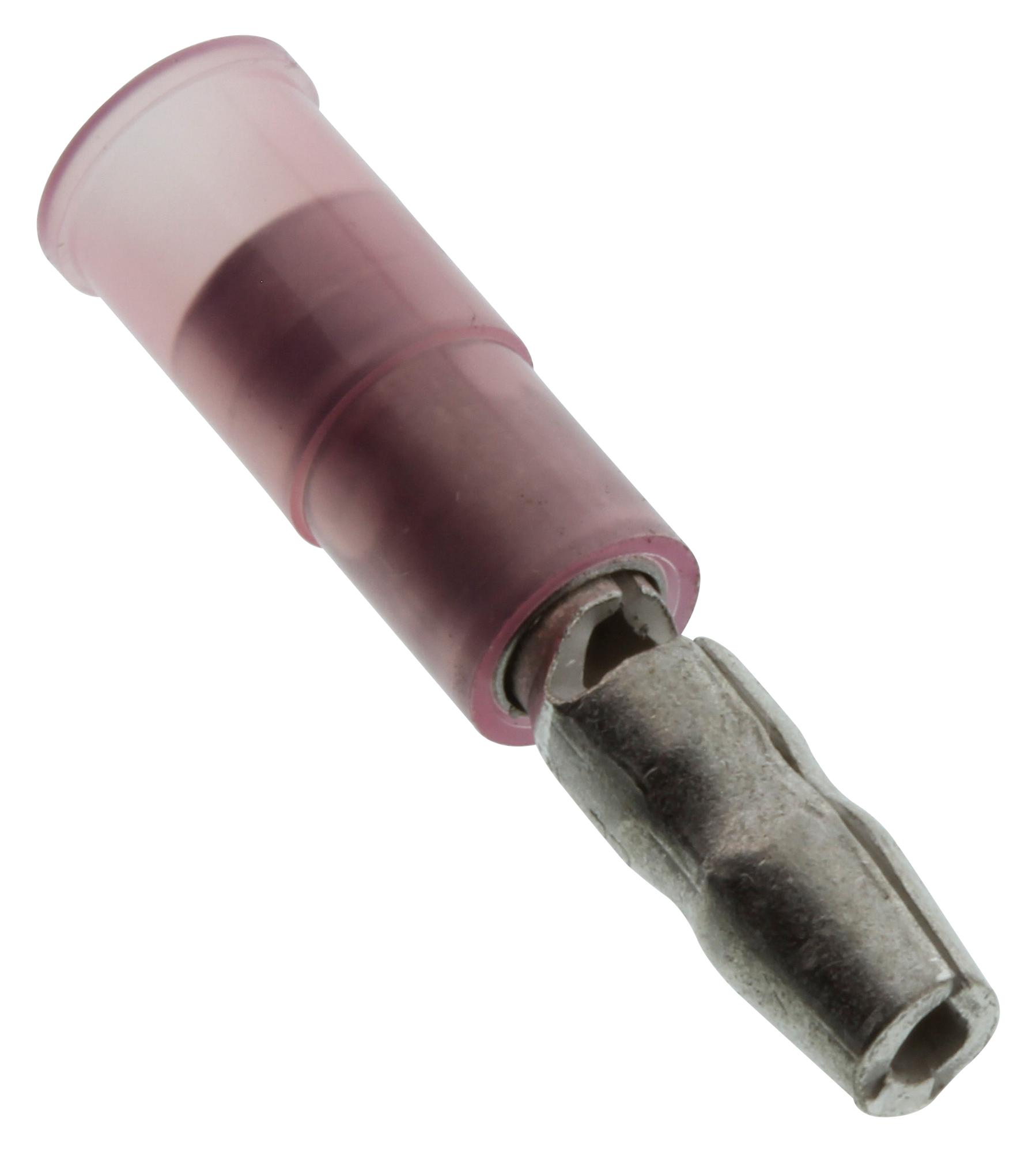

MOLEX 190350003 Avikrimp Snap Plug
The MOLEX 19035-0003 Avikrimp snap plug is a robust and reliable connector designed for quick and secure connections of 18-22 AWG wire. Featuring molded nylon insulation and tin-plated terminals, this connector ensures excellent electrical conductivity and durability. It is commonly used in industrial automation, automotive, and consumer electronics applications where a fast and dependable connection is required. The connector's design simplifies installation and maintenance, contributing to overall system efficiency. It is RoHS compliant and meets industry standards for safety and performance.
MOLEX 190350003 Avikrimp Snap Plug Specifications:
- Overview: Snap Plugs and Receptacles
- Description: Avikrimp Snap Plug, for 18-22 AWG Wire, Box, 22.55mm Length
- Agency Certification: CSA LR18689, UL E152602
- Product Family: Quick Disconnects
- Series: 19035
- Insulation Material: Nylon (PA)
- Plating Material (Mating): Tin
- Plating Material (Termination): Tin
- Resin Material: Nylon
- Flammability: 94V-2
- Gender: Male
- Lock to Mating Part: None
- Orientation: Straight
- Wire Size: 18, 20, 22 AWG
- Wire Insulation Diameter: 3.60mm max.
- Net Weight: 1.346/g
- Material - Metal: Copper
- Material - Resin: Nylon
- China ROHS: Green Image
- RoHS Phthalates: Not Contained
- REACH SVHC: Not Contained
- EU ELV: Not Relevant
- EU RoHS: Compliant
- Halogen-Free: FreeFreeFree
- Low-Halogen: Yes
- Glow-Wire Capable: No
- Tab Thickness: N/A
- Tab Width: N/A
- Voltage - Maximum: N/A
- Engineering Number: A-569
Buy the 19035-0003 MOLEX Avikrimp Snap Plug | myMectronic
Purchase the MOLEX 19035-0003 Avikrimp Snap Plug securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 190350003?
You can click on the BUY or RFQ button to purchase 190350003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 190350003?
You can download the 190350003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 190350003?
MOLEX
