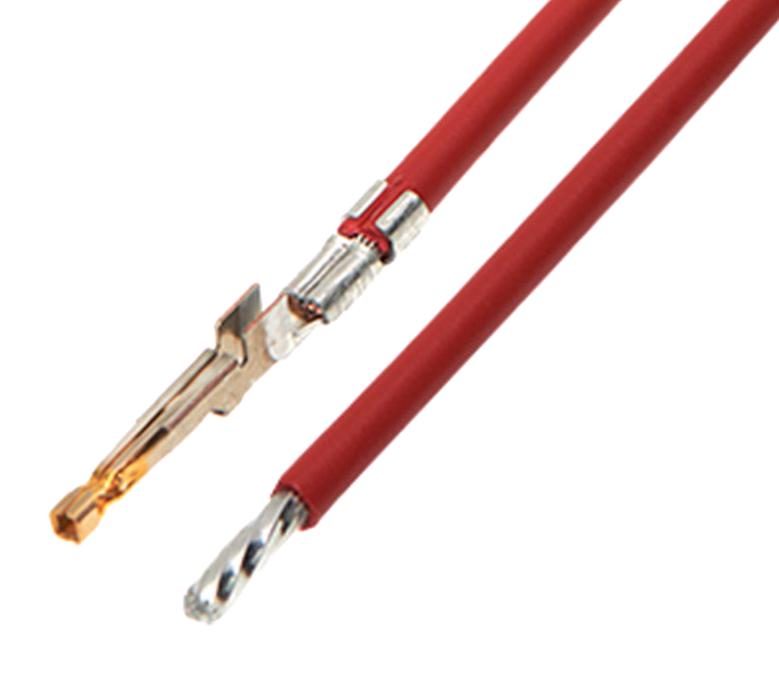

MOLEX 2174712202 Ultra-Fit Female-to-Pigtail Cable
Molex's pre-crimped leads are ideal for prototyping, pre-production, and mass manufacturing, offering quick installation and reliable connectivity. This ultra-fit female-to-pigtail cable features a red resin housing, high-conductivity copper contacts with gold plating for enhanced durability, and conforms to UL 1061 standards. Rated for 600V AC/DC and capable of carrying 12A per contact, it is designed with 20 AWG wire, making it suitable for power and signal applications. Fully tested and ready-to-use, these leads accelerate project development and optimize assembly efficiency for various industries.
MOLEX 2174712202 Ultra-Fit Female-to-Pigtail Cable Specifications:
- Cable Length: 150.00mm
- Wire Size: 20 AWG
- Wire Insulation Diameter: 2.03-2.39mm
- Voltage Rating: 600V AC/DC
- Current Rating: 12.0A per contact
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Gold
- Housing Color: Red
- Gender: Female-Pigtail
- Application: Power and signal connectivity
- Certification: UL 1061
- Packaging: Bag
- Connector Style: Crimp or Compression
- Resistance to Halogens and RoHS compliant
Buy the Molex Series Ultra-Fit Female-to-Pigtail Cable: 2174712202
Buy your Molex Ultra-Fit Female-to-Pigtail cable online today and enhance your project’s efficiency. Designed for quick, reliable connections in prototypes and mass production, this 150mm, 20 AWG cable features gold-plated high-conductivity copper contacts and a durable red resin housing. Rated for 600V AC/DC and capable of carrying 12A, it is fully tested, UL 1061 compliant, and suitable for power and signal applications. Simplify assembly processes and accelerate your time-to-market with this high-quality, ready-to-use cable assembly.
Order your Molex Series Ultra-Fit Female-to-Pigtail cable today and ensure reliable connections for your prototype or production projects.
Frequently Asked Questions
Where can I buy MOLEX 2174712202?
You can click on the BUY or RFQ button to purchase 2174712202 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2174712202?
You can download the 2174712202 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2174712202?
MOLEX
