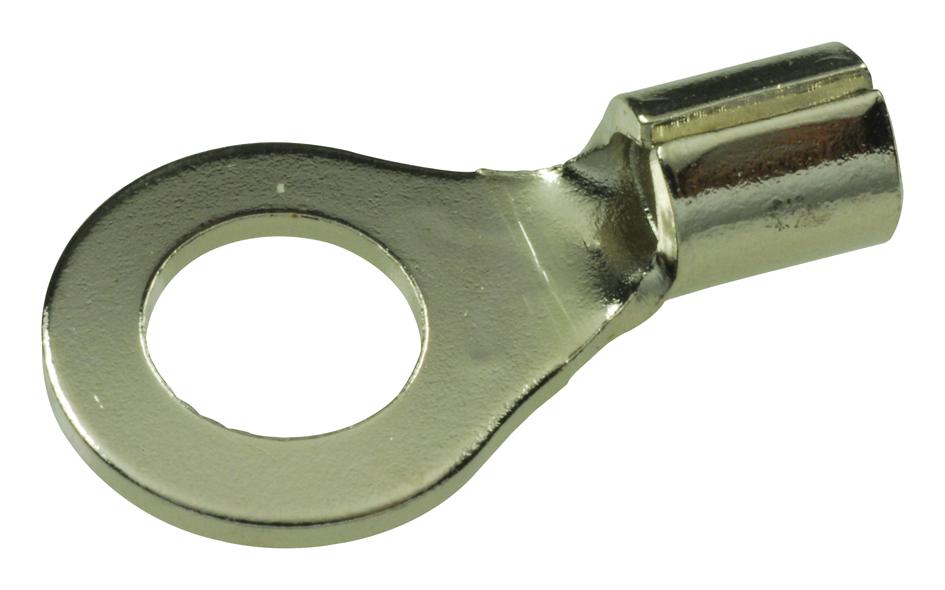

MOLEX 190440142 Krimptite Ring Tongue Terminal
The MOLEX 19044-0142 Krimptite Ring Tongue Terminal is a solderless termination solution for heavy-duty applications. Designed for use with 14-16 AWG wire, this terminal provides a secure and reliable connection through crimp or compression. It features a closed barrel design and tin plating on both the mating and termination surfaces, ensuring excellent conductivity and corrosion resistance. Certified by CSA and UL, this terminal is suitable for a wide range of industrial and commercial applications where robust and dependable electrical connections are required.
MOLEX 190440142 Krimptite Ring Tongue Terminal Specifications:
- Status: Active
- Overview: Solderless Terminals
- Description: Krimptite Ring Tongue Terminal for 14-16 Heavy Duty AWG Wire
- Product Family: Ring and Spade Terminals
- Series: 19044
- Comments: Heavy Duty
- Crimp Quality Equipment: Yes
- Mil-Spec: N/A
- Product Name: Krimptite
- Type: Ring
- UPC: 800755060188
- Barrel Type: Closed
- Insulation: None
- Material - Plating Mating: Tin
- Net Weight: 3.513/g
- Packaging Type: Bag
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Stud Size: 7/16" (M11)
- Termination Interface Style: Crimp or Compression
- Wire Size AWG: 14, 16
- Wire Size mm²: 1.30-2.00
- Lead-free Process Capability: N/A
- Engineering Number: B-101-76HD
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- China RoHS: Compliant
- RoHS Phthalates: Not Contained
- PremiumGrade Hand Crimp Tool Product #: 640030100
- Crimp Head for AT-200 Pneumatic Hand Tool Product #: 640070100
