MOLEX 5023520201 Wire-to-Board Connector
The DuraClik Wire-to-Board Header offers a reliable connection solution for PCB applications, featuring a compact right-angle design with two circuits and tin over nickel plating. Designed for durability, it supports up to 3.0A per contact and operates within a temperature range of -40°C to +105°C, with some series tolerating up to 125°C. Made from high-quality polyamide and copper alloy, it ensures long-lasting performance in demanding environments. Compatible with DuraClik crimp housings, its PCB retention and polarization features simplify assembly, making it ideal for secure, space-efficient electronic connections.
MOLEX 5023520201 Wire-to-Board Connector Specifications:
- Current per contact: 3.0A
- Maximum voltage: 125V
- Temperature range: -40°C to +105°C (up to 125°C for certain series)
- Material - Metal: Copper Alloy
- Material - Plating: Tin over Nickel
- Material - Resin: Polyamide
- Color - Resin: Black
- Mated height: 6.40mm
- Number of circuits: 2
- Orientation: Right Angle
- Termination style: Surface Mount
- Flammability: UL Recognized
- RoHS and ELV Compliant
- Operating at 85–90 words

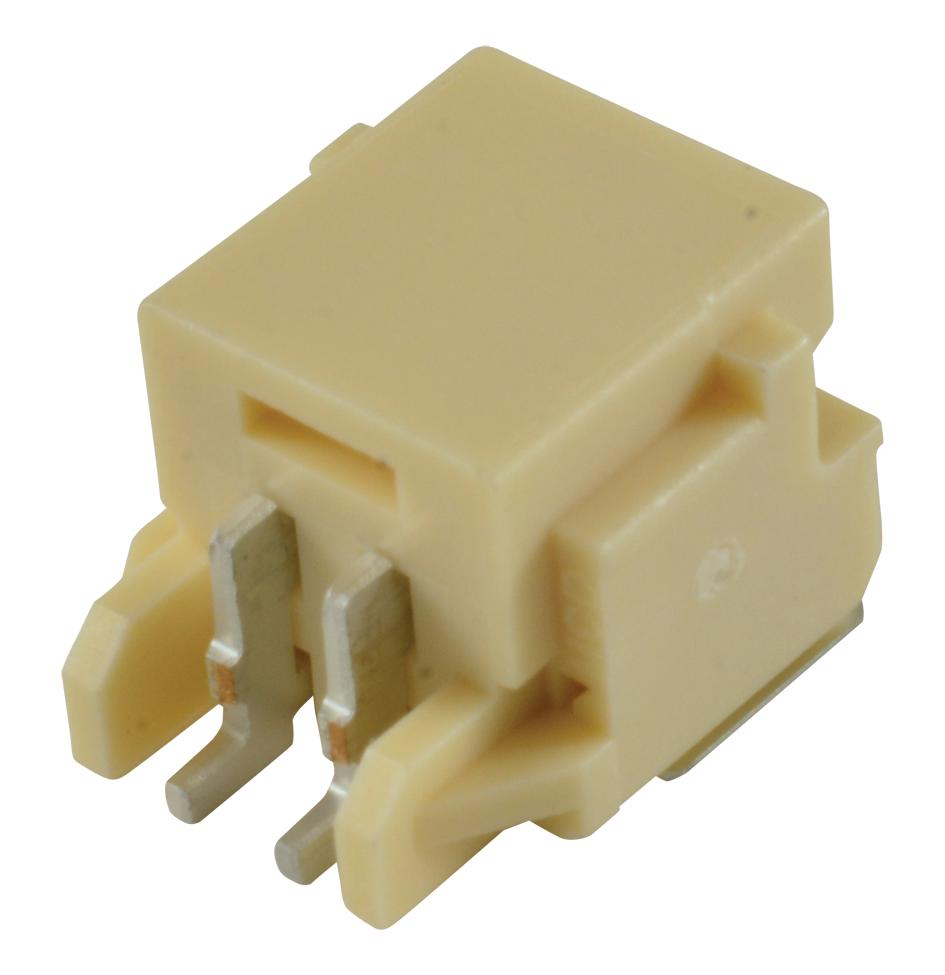

Buy the Buy Molex DuraClik Wire-to-Board Header Part Number 5023520201 Online
Enhance your electronic assembly with the Molex Wire-to-Board Connector, offering robust performance with a compact right-angle design. Featuring two circuits, tin over nickel plating, and supporting currents up to 3.0A, it ensures reliable power and signal transmission. Operating efficiently from -40°C to +105°C, it is suitable for demanding environments. Made of durable polyamide and copper alloy, this connector simplifies PCB applications with its polarization and retention features, providing a secure and space-saving connection solution. Purchase online today for fast, reliable delivery and quality assurance.
Get Molex 5023520201 today—designed for secure, space-efficient PCB connections with high durability and excellent electrical performance.
Frequently Asked Questions
Where can I buy MOLEX 5023520201?
You can click on the BUY or RFQ button to purchase 5023520201 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5023520201?
You can download the 5023520201 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5023520201?
MOLEX
