MOLEX 757570441 PCB Power Header
The MX150 Series Single Row Header is a vertical, unshrouded PCB connector with four circuits designed for power and wire-to-board applications. Made with high-temperature thermoplastic resin, it features brass contact material with tin plating, and offers a mating pin length of 11.20mm and a PCB tail length of 3.05mm. Capable of withstanding up to 25 mating cycles, it operates within a temperature range of -40°C to +125°C and supports 17A current per contact at 500V DC. Suitable for various power distribution and industrial equipment, it offers reliable, high-current connections in a compact form factor.
MOLEX 757570441 PCB Power Header Specifications:
- Circuits: 4, maximum 4
- Color: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Temperature Range: -40°C to +125°C
- Current - Maximum per Contact: 17.0A
- Voltage - Maximum: 500V DC
- Contact Material: Brass
- Plating minimum - Mating: 1.524μm
- Guided to Mating Part: No
- Physical orientation: Vertical
- Number of Rows: 1
- Connector Type: PCB Header
- Connection Style: Through Hole
- Mating Interface Pitch: 3.50mm
- Net weight: 1.009g
- Packaging: Tube
- Durability (mating cycles max): 25

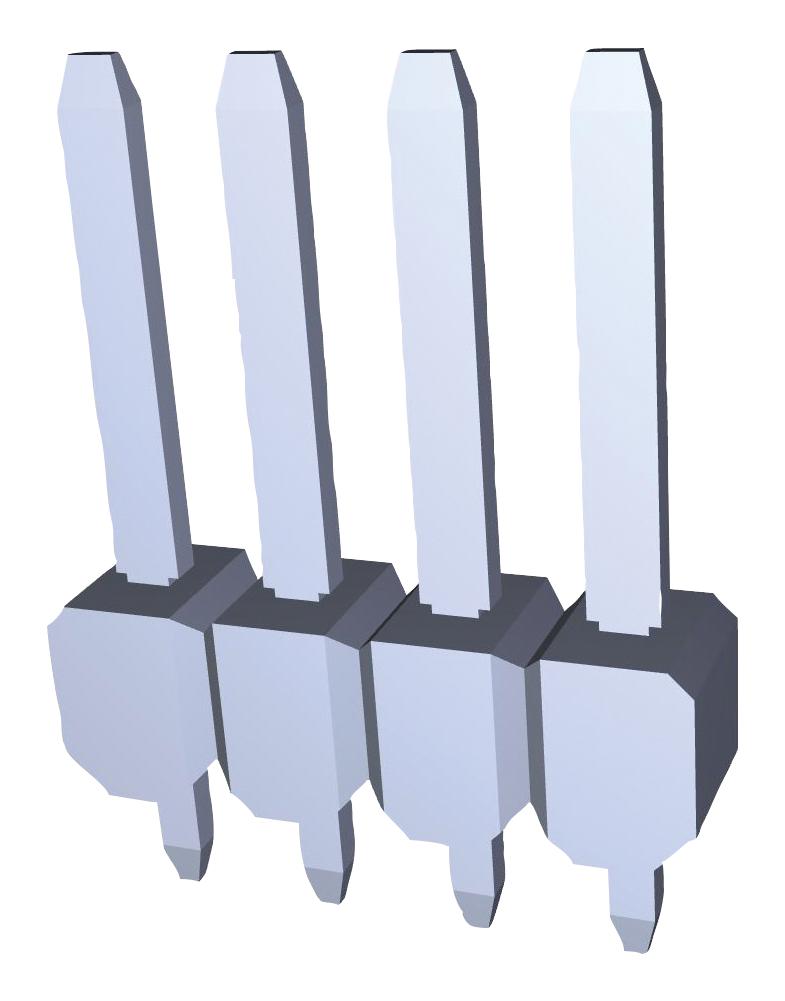

Buy the Molex Series 75757 MX150 Unshrouded Header: 0757570441
Order the Molex MX150 0757570441 online today and enjoy high-quality power connections designed for industrial and electronic equipment. This PCB header features four circuits, vertical orientation, and a robust construction with high-temperature thermoplastic resin and tin-plated brass contacts. Supporting up to 17A and 500V DC, it operates across a temperature range of -40°C to +125°C, offering reliability with 25 mating cycles. Its compact design and easy-through-hole termination make it ideal for power distribution, automation systems, and industrial electronics.
Buy Molex MX150 0757570441 now and experience unmatched reliability and performance with high-current, durable power connections.
Frequently Asked Questions
Where can I buy MOLEX 757570441?
You can click on the BUY or RFQ button to purchase 757570441 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 757570441?
You can download the 757570441 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 757570441?
MOLEX
