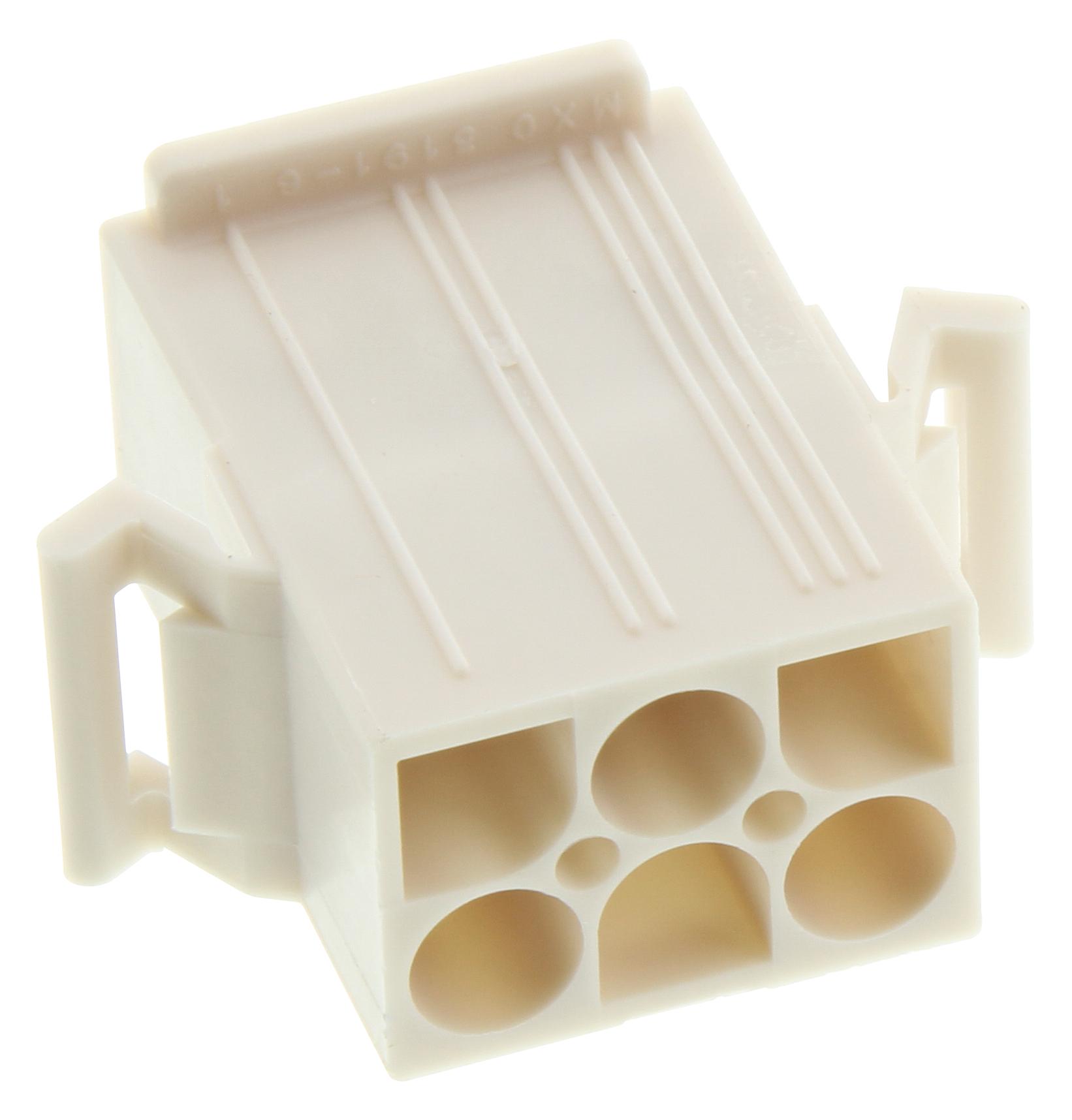

MOLEX 19092067 Standard Pin and Socket Plug Housing
The MOLEX 19-09-2067 is a standard .093" pin and socket plug housing designed for robust wire-to-wire power applications. Constructed from nylon and featuring a UL 94V-0 flammability rating, this 6-circuit connector offers a positive latch mechanism and panel mount capability for secure integration. It is polarized to the mating part and includes mounting ears for added stability. Compatible with a range of crimp terminals, this connector is a reliable choice for various industrial and automotive applications.
MOLEX 19092067 Standard Pin and Socket Plug Housing Specifications:
- overview: Standard .093" Pin and Socket Connectors
- diameter: 2.36mm
- circuits_maximum: 6
- flammability: 94V-0
- gender: Plug
- keying_to_mating_part: None
- material: Nylon
- number_of_rows: 2
- panel_mount: Yes
- pitch_mating_interface: 6.70mm
- temperature_range_operating: -40° to +105°C
- current_maximum_per_contact: 9.0A
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- packaging_type: Bag
- net_weight: 7.382/g
- application: Power, Wire-to-Wire
- comments: Polarized to Mating Part, with Mounting Ears
