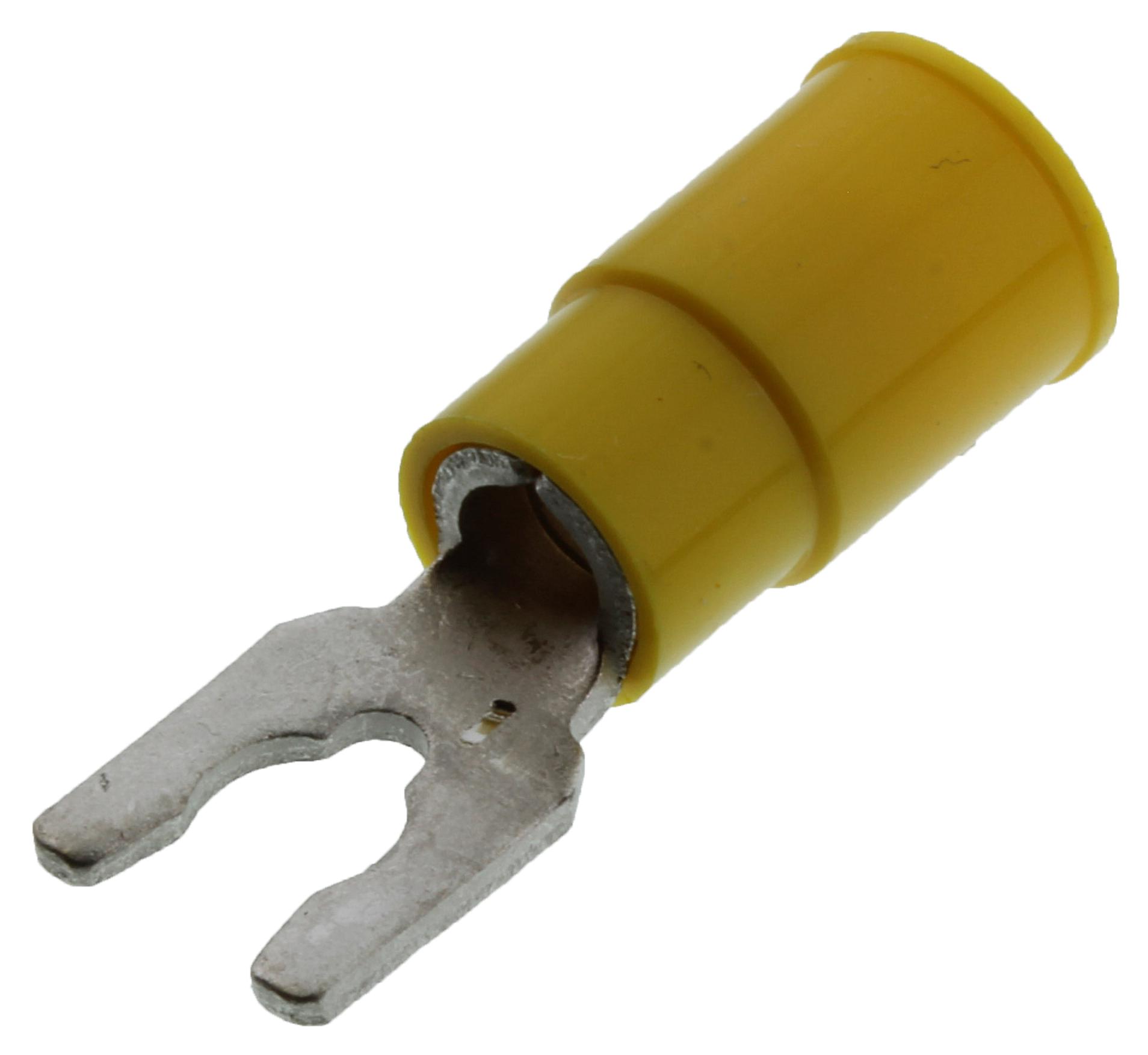

MOLEX 190990048 InsulKrimp Snap Spade Terminal
The MOLEX 19099-0048 InsulKrimp Snap Spade Terminal is a solderless termination solution designed for secure and efficient wire connections. This terminal is specifically engineered for use with 10-12 AWG wire and features a closed barrel design for enhanced insulation and protection. The tin plating provides excellent conductivity and corrosion resistance, making it suitable for a wide range of industrial applications, including automotive, appliance, and general electrical systems. Its InsulKrimp design ensures a consistent and reliable crimp, simplifying the termination process and improving overall product performance. The terminal is RoHS compliant and part of the 19099 series, known for its quality and durability.
MOLEX 190990048 InsulKrimp Snap Spade Terminal Specifications:
- status: Active
- overview: Solderless Terminals
- description: InsulKrimp Snap Spade Terminal for 10-12 AWG Wire, Yellow
- product_family: Ring and Spade Terminals
- series: 19099
- crimp_quality_equipment: Yes
- mil_spec: N/A
- type: Spade Snap
- upc: 800753089457
- barrel_type: Closed
- color_resin: Yellow
- flammability: 94V-0
- insulation: PVC
- material_plating_mating: Tin
- net_weight_g: 1.662
- packaging_type: Bag
- stud_size: 8 (M4)
- wire_insulation_diameter_max_mm: 6.40
- wire_size_awg: 10, 12
- wire_size_mm_sq: 3.30-5.00
- lead_free_process_capability: N/A
- engineering_number: C-2718-08X
- drawing_product_specification: PS-19902-009-001, PS-19902-011-001, PS-19902-013-001
- sales_drawing: CCD20503
- eu_elv: Not Relevant
- eu_rohs: Not Reviewed
- reach_svhc: Contained Per ED/88/2018 (15 January 2019) Di-(2-ethylhexyl)phthalate (DEHP)
- halogen_free_status: Not Low-Halogen
- rohs_phalates: Not Contained
Buy the 19099-0048 MOLEX InsulKrimp Snap Spade Terminal | myMectronic
Purchase the MOLEX 19099-0048 InsulKrimp Snap Spade Terminal securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 190990048?
You can click on the BUY or RFQ button to purchase 190990048 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 190990048?
You can download the 190990048 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 190990048?
MOLEX
