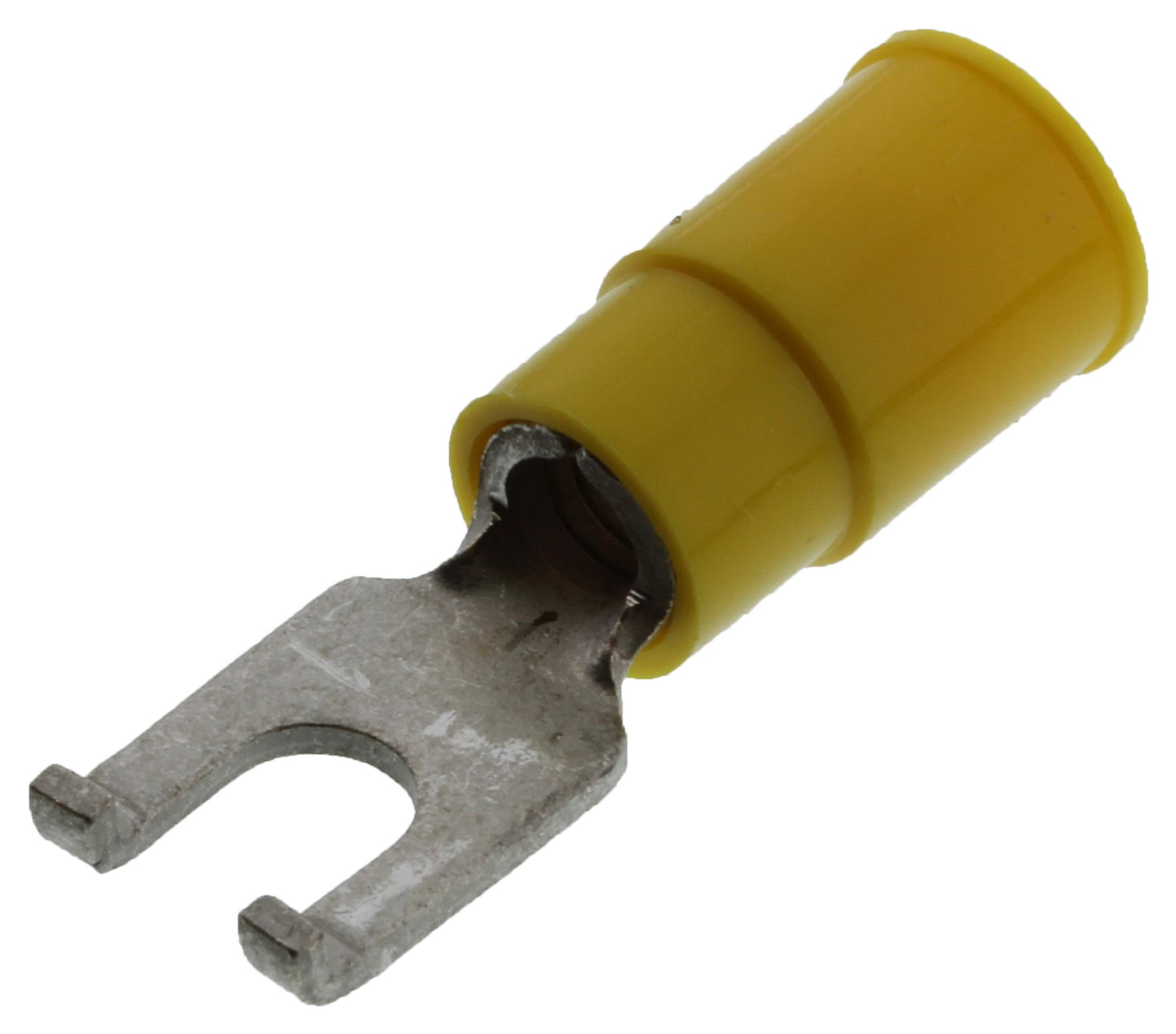

MOLEX 191210053 InsulKrimp Spade Terminal
The MOLEX 19121-0053 InsulKrimp Flanged Spade Tongue Terminal is a robust and reliable connector solution for terminating 10-12 AWG wire. Its flanged design provides added stability and security in applications requiring a secure connection to a stud or post. The InsulKrimp insulation ensures excellent protection against environmental factors and abrasion. Commonly used in automotive, industrial equipment, and appliance manufacturing, this terminal offers a dependable and efficient connection for power and signal transmission. Its tin plating provides excellent corrosion resistance and ensures long-term performance.
MOLEX 191210053 InsulKrimp Spade Terminal Specifications:
- status: Active
- overview: Solderless Terminals
- description: InsulKrimp Flanged Spade Tongue Terminal for 10-12 AWG Wire, Stud Size 8 (M4), Width 9.53mm
- series: 19121
- wire_size_awg: 10, 12
- wire_size_mm2: 4.00-6.00
- stud_size: 8 (M4)
- width_mm: 9.53
- material_plating_mating: Tin
- material_plating_termination: Tin
- plating_min_mating_um: 4.064
- plating_min_termination_um: 4.064
- net_weight_g: 1.903
- barrel_type: Closed
- color_resin: Natural
- flammability: 94V-0
- insulation: PVC
- material: N/A
- mil_spec: N/A
- product_name_molex: InsulKrimp
- upc: 800753096035
- packaging_type: Bag
- wire_insulation_diameter_mm: 6.35
- lead_free_process_capability: N/A
- engineering_number: C-217-08X
- drawing_numbers: PS-19902-009-001, PS-19902-011-001, PS-19902-013-001, SD-19121-001
- eu_elv: Not Relevant
- eu_rohs: Not Reviewed
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- application_tooling_premium_hand_crimp: 640010100
- application_tooling_hand_crimp: 640010300
- application_tooling_crimp_head_at200: 640050100
- application_tooling_crimp_head_at200_2: 640050300
- agency_certification_csa: LR18689
- agency_certification_ul: E32244
