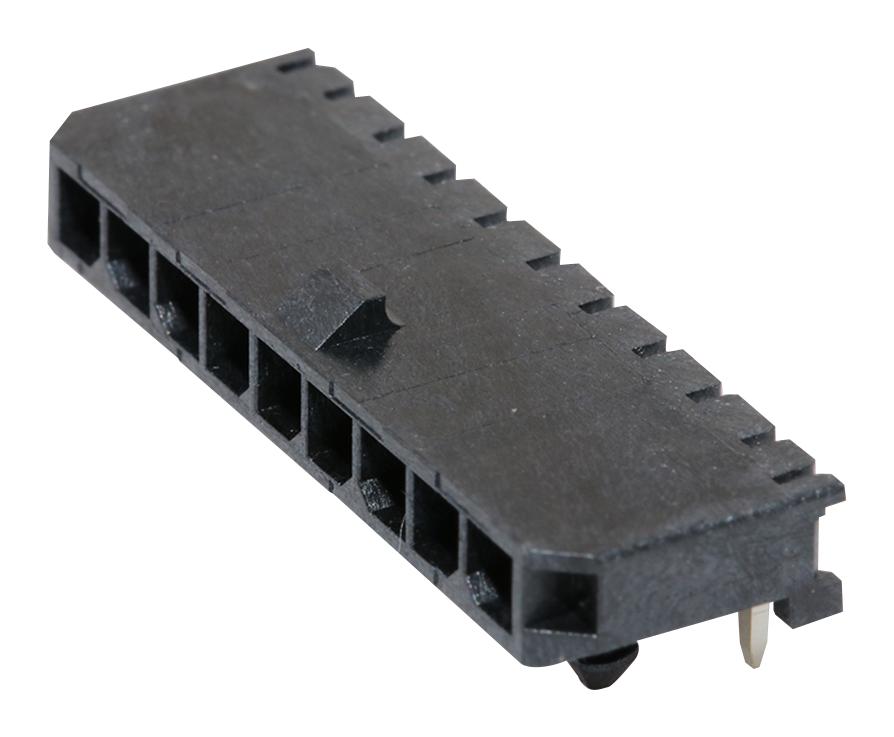

MOLEX 436500900 Micro-Fit 3.0 Header
The MOLEX 43650-0900 is a Micro-Fit 3.0 right-angle header, part of the Micro-Fit 3.0 Connector System. This header is designed for secure wire-to-board connections and features 9 circuits arranged in a single row. It boasts a 3.00mm pitch and is finished with tin plating for enhanced conductivity and corrosion resistance. The header is glow-wire capable, meeting stringent safety standards for household and similar electrical appliances. Its right-angle orientation simplifies PCB layout and reduces strain on connections. Suitable for power applications, this header is a reliable choice for various industrial and consumer electronics projects.
MOLEX 436500900 Micro-Fit 3.0 Header Specifications:
- overview: Micro-Fit 3.0 Connector System
- application: Power, Wire-to-Board
- number_of_circuits_loaded: 9
- number_of_circuits_maximum: 9
- color_resin: Black
- durability_mating_cycles_max: 30
- flammability: 94V-0
- glow_wire_capable: Yes
- mated_height: 6.98mm
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: High Temperature Thermoplastic
- net_weight_g: 1.638
- number_of_rows: 1
- orientation: Right Angle
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Tray
- pitch_mating_interface_mm: 3.00
- plating_min_mating_um: 2.540
- plating_min_termination_um: 2.540
- polarized_to_pcb: Yes
- shrouded: Fully
- stackable: No
- smc_compatible: Yes
- operating_temperature_range_c: -40° to +105°
- termination_interface_style: Through Hole
- current_max_per_contact_a: 8.5
- voltage_max_v: 600
- max_process_temp_seconds: 030
- max_cycles_process_temp: 003
- process_temp_max_c: 260
- gwit_c: 775
- gwfi_c: 850
- reach_svhc: Not Contained
