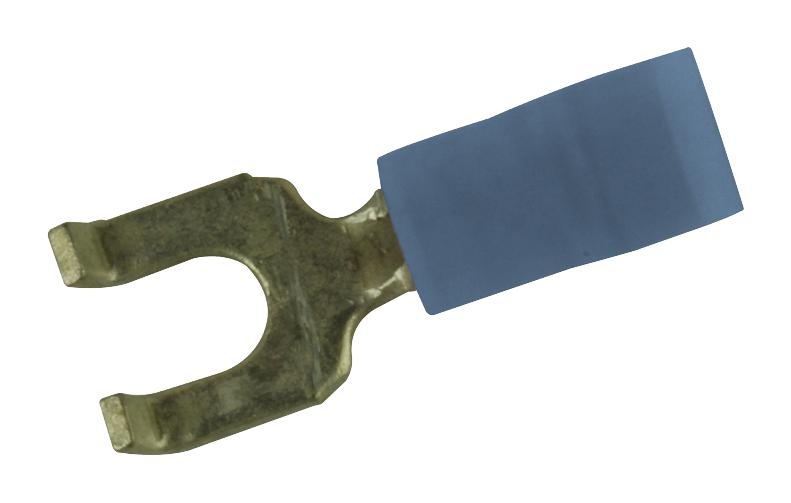

MOLEX 191270039 Avikrimp Spade Terminal
The MOLEX 0191270039 Avikrimp flanged spade tongue terminal is a solderless termination solution for 14-16 AWG wire, offering a secure connection with a stud size of 6 (M3.5). Constructed with a closed barrel and tin plating, this terminal provides excellent conductivity and corrosion resistance. It is commonly used in automotive, industrial, and consumer electronics applications where a reliable and compact termination is required. The terminal's nylon insulation and robust design ensure durability and long-term performance.
MOLEX 191270039 Avikrimp Spade Terminal Specifications:
- Status: Active
- Overview: Solderless Terminals
- Description: Avikrimp Flanged Spade Tongue Terminal for 14-16 AWG Wire, Stud Size 6 (M3.5)
- Product Family: Ring and Spade Terminals
- Series: 19127
- Crimp Quality Equipment: Yes
- Mil-Spec: N/A
- Product Name: Avikrimp
- Type: Spade
- UPC: 800753099289
- Barrel Type: Closed
- Flammability: 94V-2
- Insulation: Nylon (PA)
- Material - Plating Mating: Tin
- Net Weight: 0.856/g
- Packaging Type: Bag
- Plating min - Mating: 7.620µm
- Plating min - Termination: 7.620µm
- Stud Size: 6 (M3.5)
- Wire Insulation Diameter: 4.32mm max.
- Wire Size AWG: 14, 16
- Wire Size mm²: 1.00-2.50
- Engineering Number: BB-816-06
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- China RoHS: Compliant
- RoHS Phthalates: Not Contained
- PremiumGrade Hand Crimp Tool: 640010100
- Crimp Head for AT-200 Pneumatic Hand Tool: 640050100
Buy the 0191270039 MOLEX Avikrimp Spade Terminal | myMectronic
Purchase the MOLEX 0191270039 Avikrimp Spade Terminal securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 191270039?
You can click on the BUY or RFQ button to purchase 191270039 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 191270039?
You can download the 191270039 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 191270039?
MOLEX
