MOLEX 08500159 KK Interconnect System

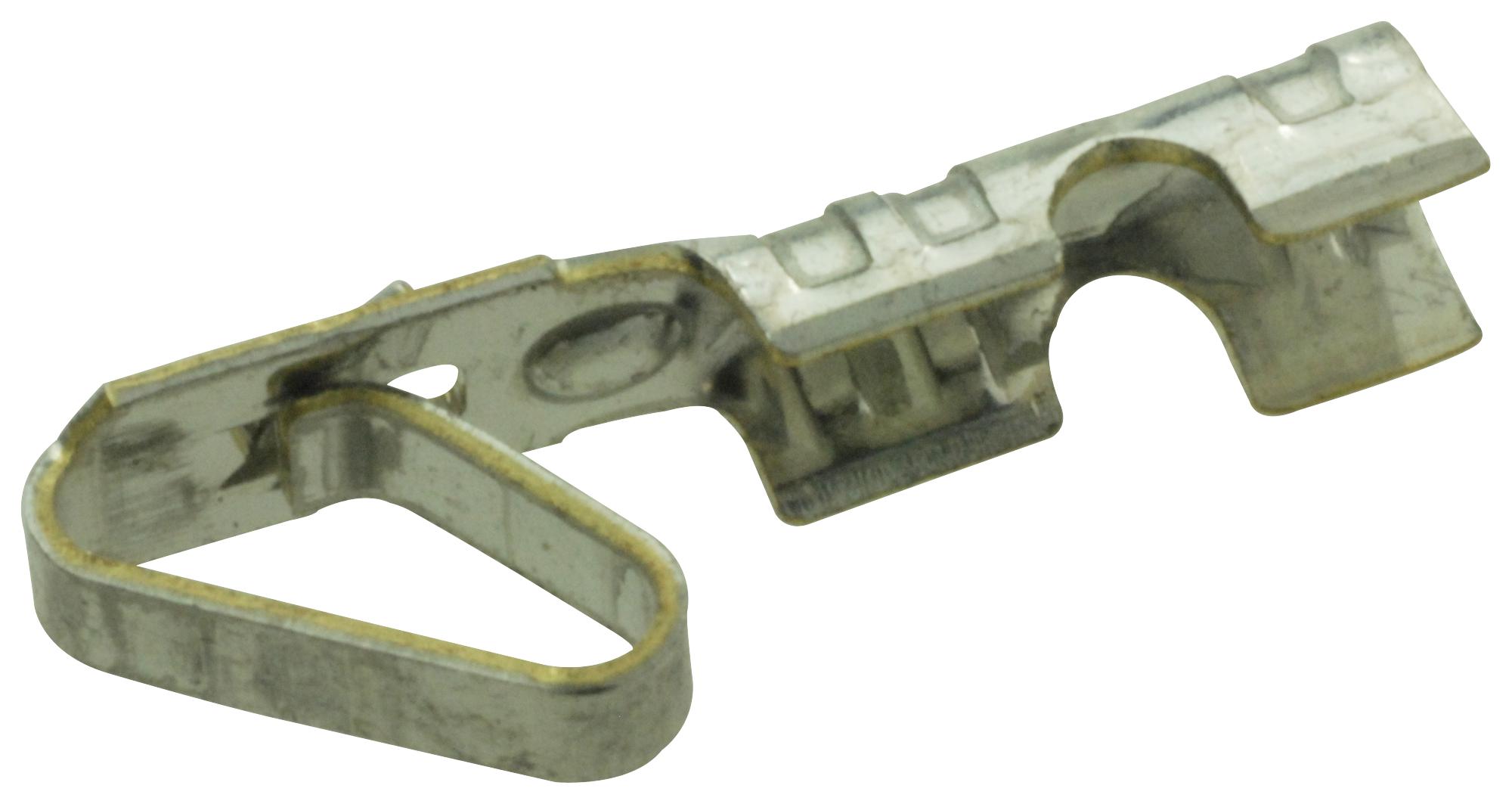

The MOLEX 0008500159 KK 254 Crimp Terminal is a crucial component in the KK Interconnect System, providing a reliable connection for wires ranging from 22 to 30 AWG. Constructed with a brass body and tin plating over a nickel underplating, this terminal ensures excellent conductivity and corrosion resistance. It's commonly used in applications requiring robust and secure wire terminations, such as automotive, industrial equipment, and consumer electronics. The reel packaging and compact design make it suitable for automated assembly processes.
MOLEX 08500159 KK Interconnect System Specifications:
- material_metal: Brass
- material_plating: Tin
- plating_min_mating: 5.080µm
- plating_min_termination: 5.080µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 1.57mm
- wire_size_awg: 22, 24, 26, 28, 30
- wire_size_mm2: N/A
- packaging_type: Reel
- net_weight_g: 0.068
- elv: Not Relevant
- rohs: Compliant
- china_rohs: Not Contained
- halogen_free: Low-Halogen
- series: 2759
- use_with: 2695 , 5051
- engineering_number: 2759-(154)B
- extraction_tool_product_number: 11030022
- insertion_tool_product_number: 638120000
- mini_mac_applicator_1_product_number: 638882000
- mini_mac_applicator_2_product_number: 638882100
Buy the 0008500159 MOLEX KK Interconnect System | myMectronic
Purchase the MOLEX 0008500159 KK 254 Crimp Terminal securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 08500159?
You can click on the BUY or RFQ button to purchase 08500159 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 08500159?
You can download the 08500159 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 08500159?
MOLEX
