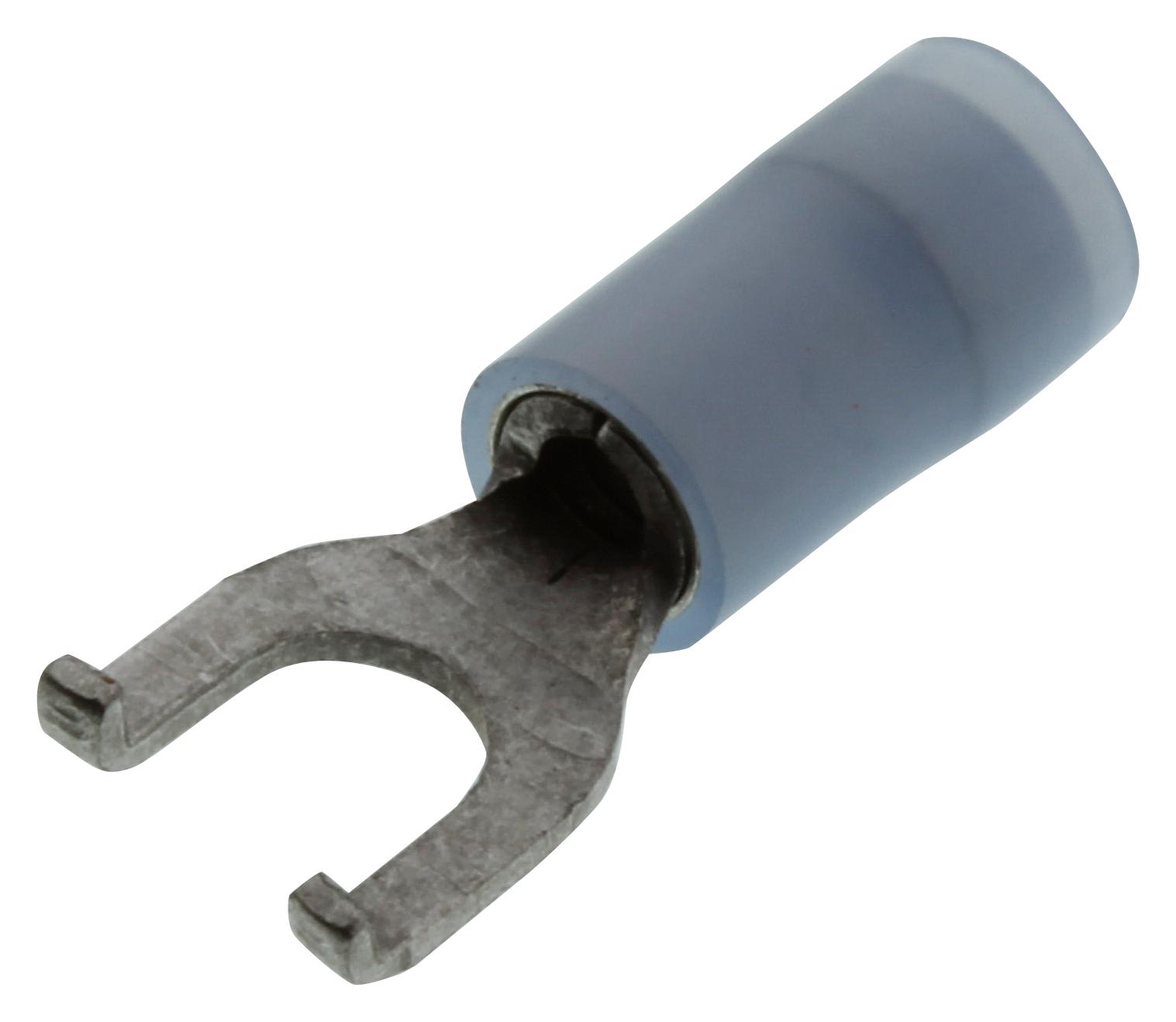

MOLEX 191270042 Avikrimp Spade Terminal
The MOLEX 19127-0042 Avikrimp terminal is a solderless spade connector suitable for a variety of applications requiring secure and reliable electrical connections. Designed for 14-16 AWG wire with an 8 (M4) stud size, this terminal offers a closed barrel construction and tin plating for enhanced corrosion resistance and conductivity. It is commonly used in automotive, industrial, and consumer electronics applications where a robust and easy-to-install connection is needed. The Avikrimp design ensures a consistent and high-quality crimp, contributing to the overall reliability of the electrical system.
MOLEX 191270042 Avikrimp Spade Terminal Specifications:
- Status: Active
- Overview: Solderless Terminals
- Product Family: Ring and Spade Terminals
- Crimp Quality Equipment: Yes
- Mil-Spec: N/A
- Product Name: Avikrimp
- Type: Spade
- Barrel Type: Closed
- Flammability: 94V-2
- Insulation: Nylon (PA)
- Material - Plating Mating: Tin
- Net Weight: 0.110/g
- Packaging Type: Bag
- Plating min - Mating: 7.620µm
- Plating min - Termination: 7.620µm
- Stud Size: 8 (M4)
- Wire Insulation Diameter: 4.32mm max.
- Wire Size AWG: 14, 16
- Wire Size mm²: 1.00-2.50
- Engineering Number: BB-816-08
- UPC: 800753024236
- EU ELV: Not Relevant
- EU RoHS: Not Reviewed
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- RoHS Phthalates: Not Contained
- PremiumGrade Hand Crimp Tool: 640010100
- Crimp Head for AT-200 Pneumatic Hand Tool: 640050100
Buy the 0191270042 MOLEX Avikrimp Spade Terminal | myMectronic
Purchase the MOLEX 19127-0042 Avikrimp Spade Terminal securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 191270042?
You can click on the BUY or RFQ button to purchase 191270042 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 191270042?
You can download the 191270042 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 191270042?
MOLEX
