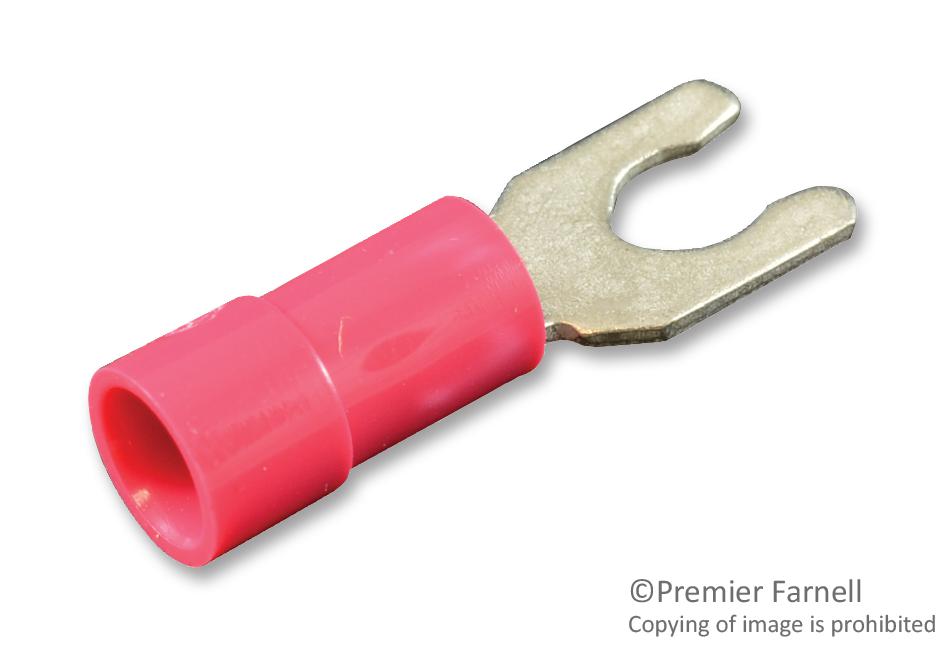

MOLEX 191300009 Spade Insulkrimp Terminal
The MOLEX 19130-0009 is a spade insulkrimp terminal, a crucial component in electrical systems requiring secure and reliable connections. Designed for use with insulkrimp technology, this terminal ensures a tight and durable bond between the wire and the termination point. It's part of the broader 19130 series, known for its quality and performance in various applications, including automotive, industrial equipment, and consumer electronics. The terminal boasts a 94V-0 flammability rating, enhancing safety in critical applications. It is RoHS compliant, meeting environmental standards, and is not considered a low-halogen product. MOLEX provides tooling solutions, such as the PremiumGrade Hand Crimp Tool (640010100) and the Crimp Head for the AT-200 Pneumatic Hand Tool (640050100), to ensure proper and consistent crimping.
MOLEX 191300009 Spade Insulkrimp Terminal Specifications:
- Part Number: 0191300009
- Status: Active
- Description: BLOCK SPADE INSULKRIMP (A-238-06X)
- Product Family: Ring and Spade Terminals
- Series: 19130
- Crimp Quality Equipment: Yes
- UPC: 800753101005
- Flammability: 94V-0
- Net Weight: 0.729/g
- Engineering Number: A-238-06X
- Product Specification: PS-19902-009-001, PS-19902-011-001, PS-19902-013-001
- Sales Drawing: ACD20301, SD-19142-002
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- Application Tooling: PremiumGrade Hand Crimp Tool (640010100), Crimp Head for the AT-200 Pneumatic Hand Tool (640050100)
- Agency Certification CSA: LR18689
- Agency Certification UL: E32244
Buy the 19130-0009 MOLEX Spade Insulkrimp Terminal | myMectronic
Purchase the MOLEX 19130-0009 Spade Insulkrimp Terminal securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 191300009?
You can click on the BUY or RFQ button to purchase 191300009 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 191300009?
You can download the 191300009 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 191300009?
MOLEX
