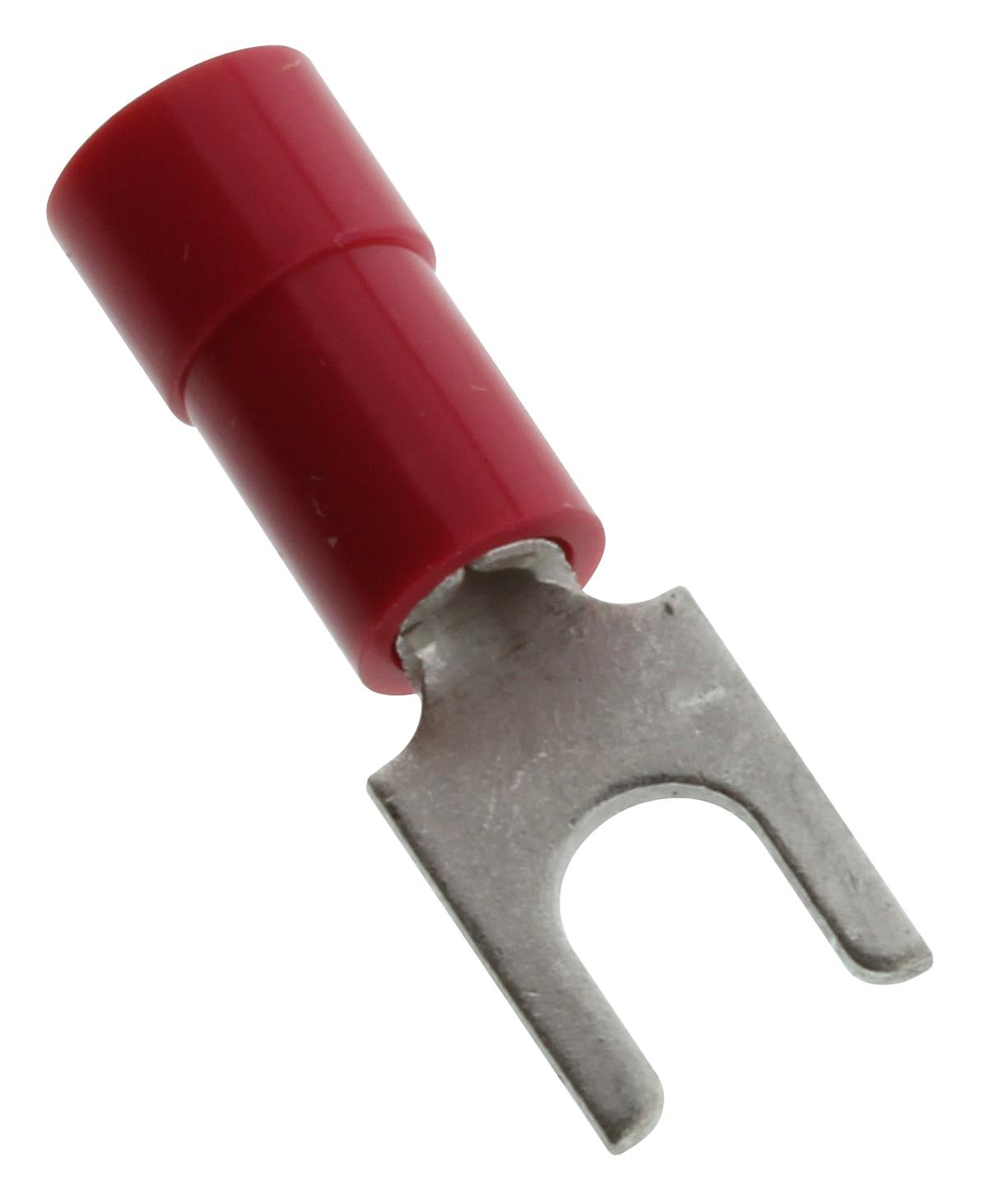

MOLEX 191310042 Spade Tongue Terminal
The MOLEX 19131-0042 InsulKrimp Block Spade Tongue Terminal is a solderless termination solution for connecting wires to terminals or connectors. Designed for 18 to 22 AWG wire, this terminal offers a secure and reliable connection with a stud size of 6 (M3.5). It is commonly used in automotive, industrial, and consumer electronics applications where a robust and insulated connection is required. The terminal's InsulKrimp design ensures a tight and protected connection, while its CSA and UL certifications guarantee compliance with industry standards. For optimal performance, use with recommended MOLEX application tooling.
MOLEX 191310042 Spade Tongue Terminal Specifications:
- Status: Active
- Overview: Solderless Terminals
- Description: InsulKrimp Block Spade Tongue Terminal for 18 to 22 AWG Wire, Stud Size 6 (M3.5), Length 6.35mm
- Series: 19131
- Product Family: Ring and Spade Terminals
- Agency Certification: CSA UL
- Flammability: 94V-0
- Insulation Material: PVC
- Plating: Tin
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Stud Size: 5-6 (M3-3.5)
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 3.70mm max.
- Wire Size: 18, 20, 22
- Wire Size mm²: 0.35-0.80
- Engineering Number: AA-2118-06X
- UPC: 800753101654
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained Per -ED/01/2018 (15 January 2018)
- Halogen-Free: Not Low-Halogen
- RoHS Phthalates: Not Contained
