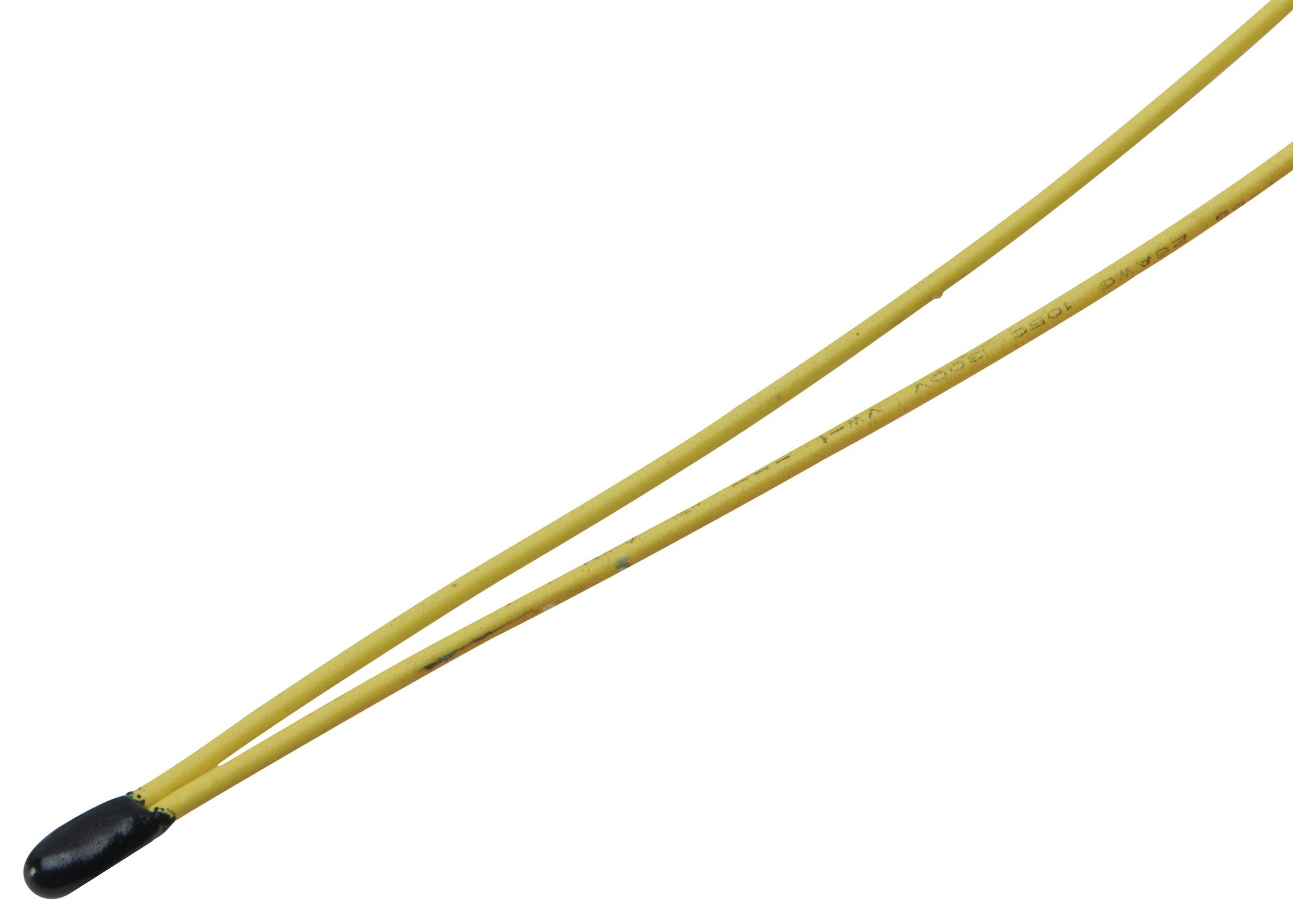

MOLEX 2152723805 NTC Temperature Sensor Cable
The MOLEX 215272-3805 is a temperature sensor cable assembly designed for applications requiring precise temperature monitoring. This cable features an NTC thermistor with an epoxy coating for environmental protection. It offers a 40mm length, a 3982 beta value, and a 30k ohm resistance at 25°C with 1% tolerance, making it suitable for various industrial and commercial temperature sensing needs. The cable is single-ended and includes a wire size of AWG 28.
MOLEX 2152723805 NTC Temperature Sensor Cable Specifications:
- overview: Temperature Sensor Cable Assemblies
- description: Epoxy Coated NTC Thermistor Cables
- length: 40.00mm
- beta_value: 3982
- resistance_at_25c: 30k ohms
- resistance_tolerance: 1%
- color_resin: Yellow
- circuits_loaded: 1
- wire_size_awg: 28
- upc: 193264680931
- net_weight: 0.150 g
- packaging_type: Bag Single Ended
- series: 215272
- application: Temperature Sensing
- assembly_configuration: Single Ended
- connector_type: NTC Thermistor-to-Pigtail
- lock_to_mating_part: Yes
