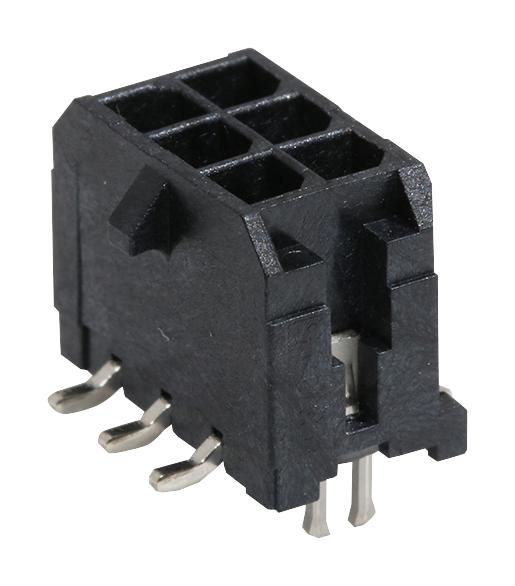

MOLEX 430450615 Power Connector
The Micro-Fit 3.0 Vertical Header is a high-temperature, 3.00mm pitch dual-row connector designed for power and wire-to-board applications. Made from flame-retardant thermoplastic with tin-plated brass contacts, it supports up to 8.5A per contact and 600V. It features PCB press-fit retention, shrouded design, and is capable of withstanding operating temperatures from -40°C to +105°C. Suitable for high-reliability electronic systems, it offers durability of up to 30 mating cycles, ensuring secure connections in demanding environments.
MOLEX 430450615 Power Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 6
- Number of Rows: 2
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Contact Current Rating: 8.5A
- Maximum Voltage: 600V
- Mated Height: 17.64mm
- Temperature Range - Operating: -40°C to +105°C
- Durability (Mating cycles maximum): 30
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Surface Mount Compatible: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Embossed Tape on Reel
Buy the Molex 0430450615 – Reliable Power and Wire-to-Board Connector for Industrial Applications
Enhance your electronic assembly with this high-reliability Power Connector designed for power and wire-to-board applications. Featuring a 3.00mm pitch, dual-row, tin-plated brass contacts, and PCB press-fit retention, it ensures robust electrical connections. Capable of operating from -40°C to +105°C, supporting up to 8.5A and 600V, with a durability of 30 mating cycles. Ideal for demanding industrial environments where safety, performance, and durability are critical, this connector guarantees secure connections and easy installation, ensuring long-term operational stability.
Buy Molex 0430450615 now and experience unmatched reliability and performance in power and signal interconnections.
