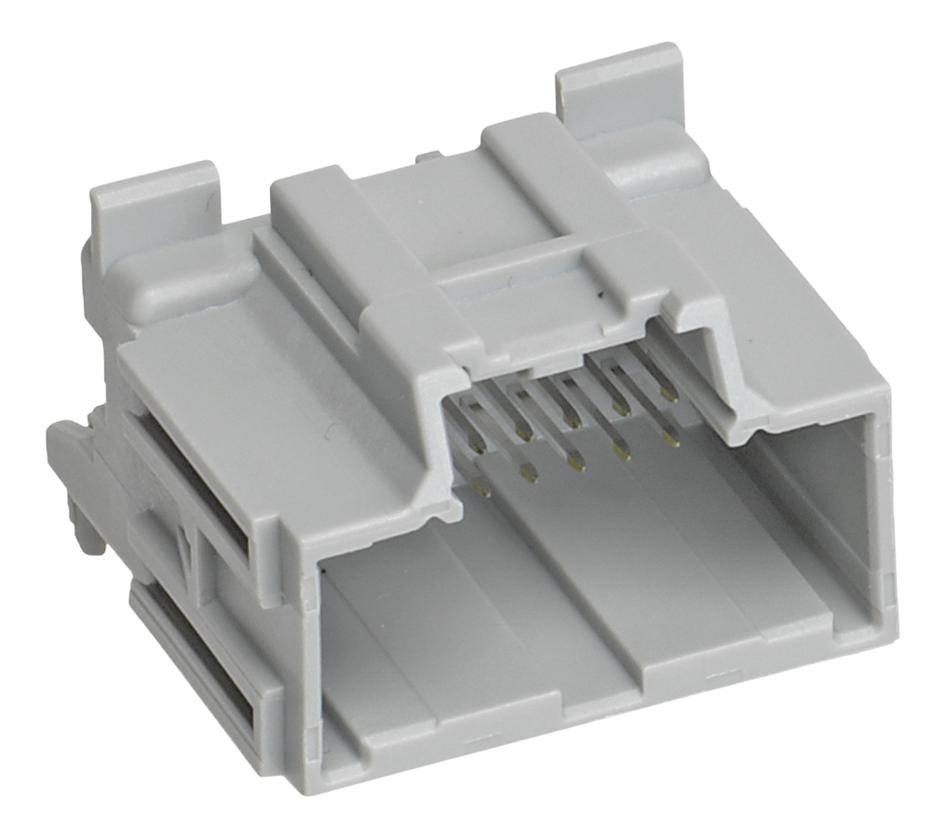

MOLEX 346910161 Stac64 Header Assembly
The MOLEX 34691-0161 Stac64 Right-Angle Header Assembly is a robust solution for wire-to-board connections in various industrial applications. This header features 16 circuits and is designed with polarization B for secure mating. Constructed with a brass metal core, tin plating for both mating and termination interfaces, and a high-temperature thermoplastic resin, it ensures reliable performance. The right-angle orientation and polarized design contribute to efficient assembly and prevent mis-mating. It is ideal for power applications requiring a durable and secure connection, and is compatible with Stac64 receptacle assemblies.
MOLEX 346910161 Stac64 Header Assembly Specifications:
- circuits_loaded: 16
- circuits_maximum: 16
- color_resin: Gray
- durability_mating_cycles: 10
- first_mate_last_break: No
- glow_wire_capable: No
- guide_to_mating_part: None
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: High Temperature Thermoplastic
- net_weight_g: 7.504
- number_of_rows: 2
- orientation: Right Angle
- pc_tail_length_mm: 3.36
- pcb_locator: Yes
- pcb_retention: None
- pcb_thickness_recommended_mm: 1.57
- packaging_type: Tray
- pitch_mating_interface_mm: 2.54
- pitch_termination_interface_mm: 2.54
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Yes
- stackable: No
- surface_mount_compatible: No
- temperature_range_operating_c: -40 to +105
- termination_interface_style: Through Hole
- current_max_per_contact_a: 10.0
- voltage_max: 500V
- duration_at_max_process_temp_seconds: 040
- max_cycles_at_max_process_temp: 003
- process_temperature_max_c: 260
