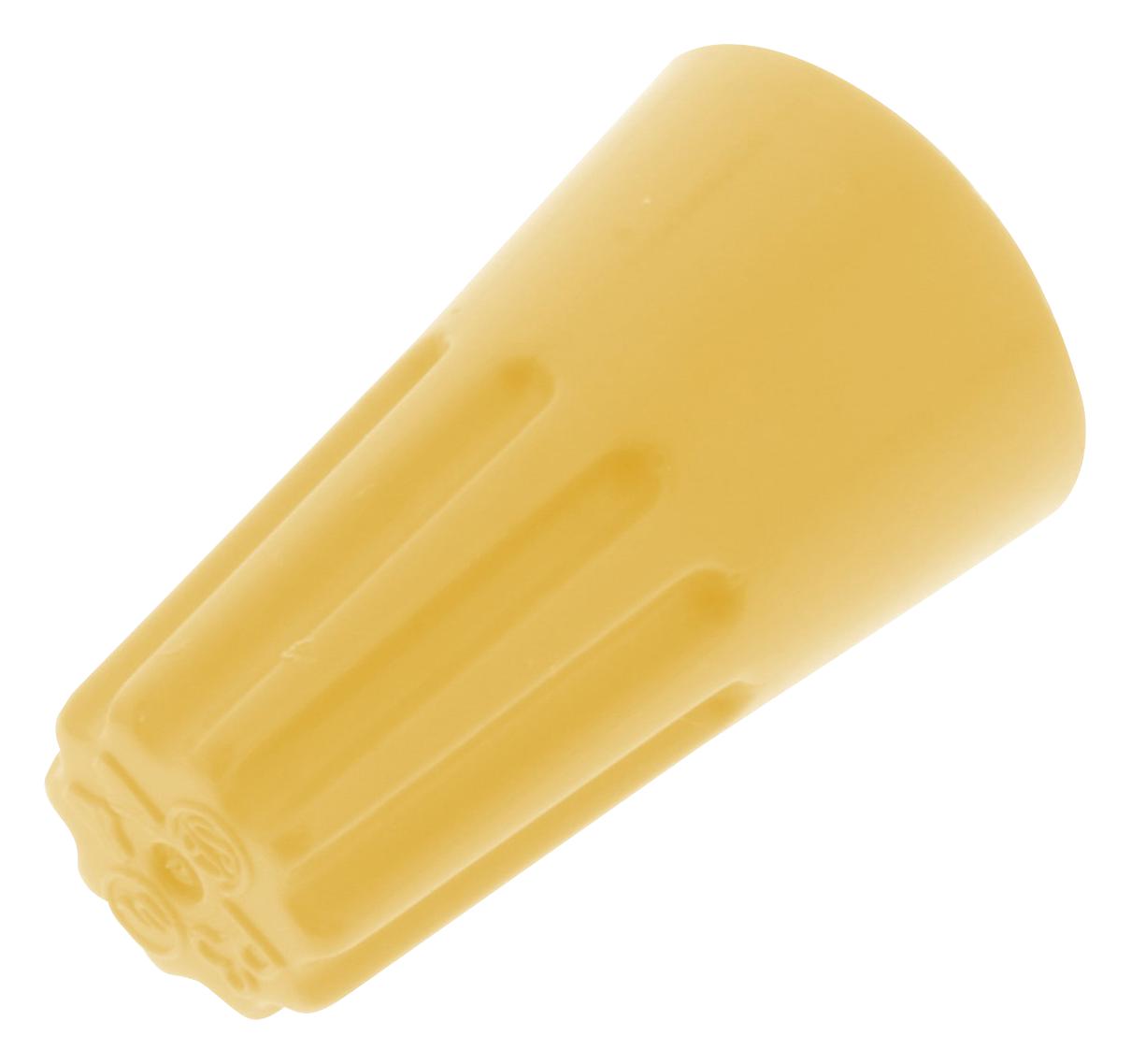

MOLEX 191600042 Twist Lock Splice
The twist lock splice for 10-22 AWG wire is a yellow, low-halogen component designed for secure electrical connections in various wiring applications. Made with a copper metal core plated in tin for reliable conductivity and corrosion resistance, it features a nylon (PA) insulation material capable of operating in temperatures up to 105°C. The splice supports voltages up to 600V and fits wire diameters with a maximum insulation diameter of 11.18mm, ensuring high-quality and safe connections for wire sizes from 10 to 26 AWG.
MOLEX 191600042 Twist Lock Splice Specifications:
- Wire Range: 10-26 AWG
- Maximum Voltage: 600V
- Operating Temperature: Up to 105°C
- Insulation Material: Nylon (PA)
- Contact Material: Copper
- Plating: Tin
- Color: Yellow
- Maximum Wire Insulation Diameter: 11.18mm
- Flammability: UL94 V-2
- Certification: UL Listed E32244
- Environmental Compliance: RoHS, China RoHS
- Net Weight: 1.984 grams
- Packaging: Bag
- Physical: Closed-end, twist lock design
- Series: 19160
- Compliance: Halogen-Free, ELV Not Relevant
Buy the Buy Molex Twist Lock Splice Part Number 0191600042 Online
Purchase Molex twist lock splice for 10-22 AWG wire online today. This yellow, low-halogen splice features tin-plated copper contacts, nylon insulation, and supports voltages up to 600V. Its design ensures secure, reliable connections with a maximum wire insulation diameter of 11.18mm across a temperature range up to 105°C. Ideal for industrial, electrical, and automation wiring projects, this splice guarantees long-lasting durability and safety in diverse environments, providing efficient solutions for professional wiring needs.
Get Molex 0191600042 today—designed for secure, high-quality wire splicing in electrical and industrial applications.
