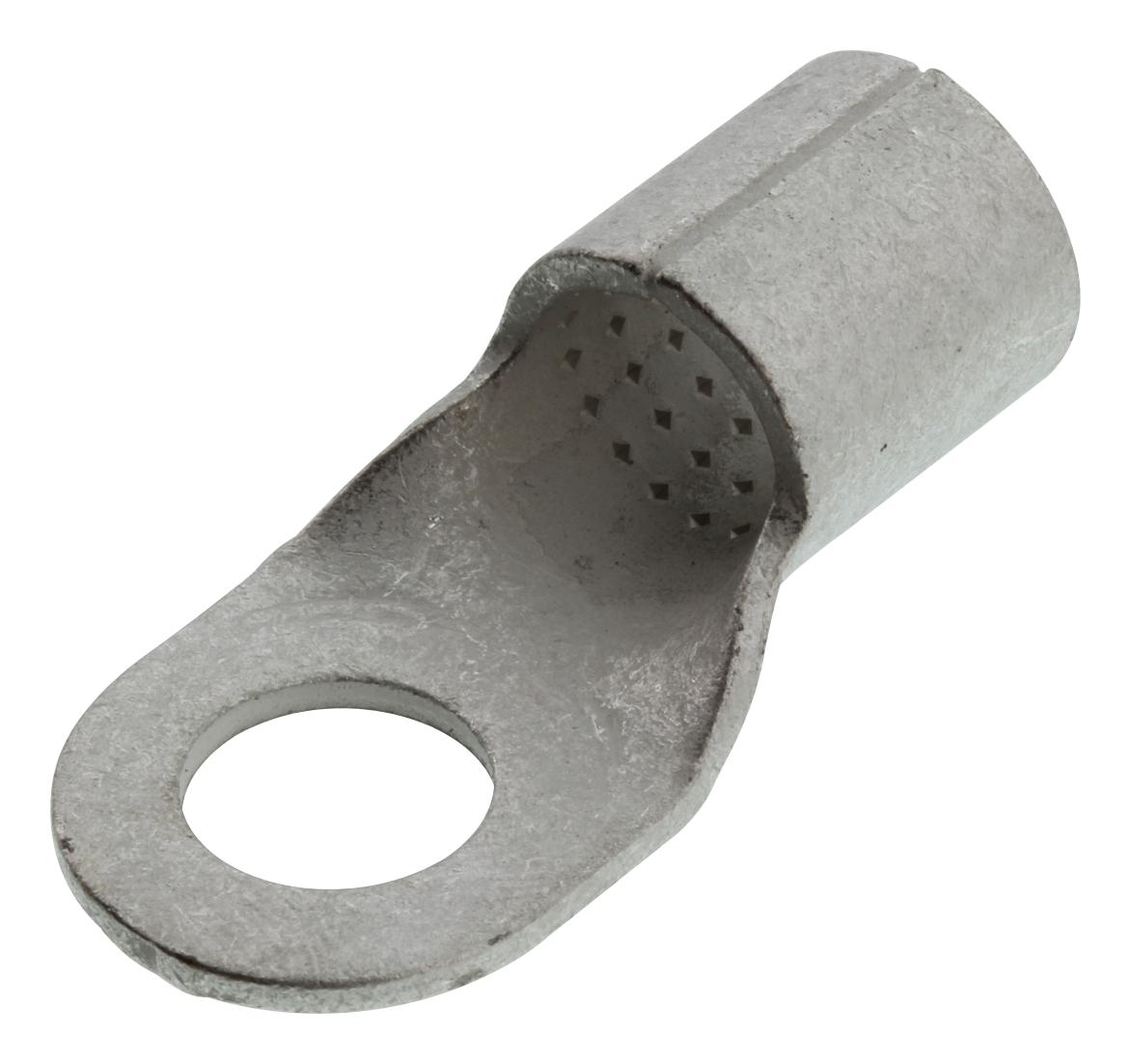

MOLEX 191930341 VersaKrimp Ring Tongue Terminal
The MOLEX 19193-0341 is a VersaKrimp ring tongue terminal, a crucial component in electrical systems requiring secure and reliable wire connections. Designed for 2/0 AWG wire, this terminal offers a closed barrel construction with a brazed seam for enhanced durability. The tin mating plating ensures excellent conductivity and corrosion resistance, while the stud size of 1/2 inch (M12) provides a standard connection point. This terminal is RoHS compliant, reflecting MOLEX’s commitment to environmental responsibility. It’s commonly used in automotive, industrial, and consumer electronics applications where robust and dependable wire termination is essential.
MOLEX 191930341 VersaKrimp Ring Tongue Terminal Specifications:
- product_family: Ring and Spade Terminals
- series: 19193
- crimp_quality: Yes
- mil_spec: N/A
- type: Ring
- upc: 800755052237
- barrel_type: Closed - Brazed
- insulation: None
- material_plating: Mating Tin
- net_weight: 26.173/g
- packaging_type: Bag
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- stud_size: 1/2" (M12)
- termination_interface: Style Crimp or Compression
- wire_size: AWG 2/0
- engineering_number: J-385-12
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per -ED/88/2018 (15 January 2019)
- halogen_free: Low-Halogen
- rohs_phthalates: Not Contained
- application_tooling_manual_pump: 192860117
- application_tooling_hydraulic_system: None
- application_tooling_die_set: 192900012
- application_tooling_manual_tool: 192940008
- application_tooling_hydraulic_dieless: 638161700
