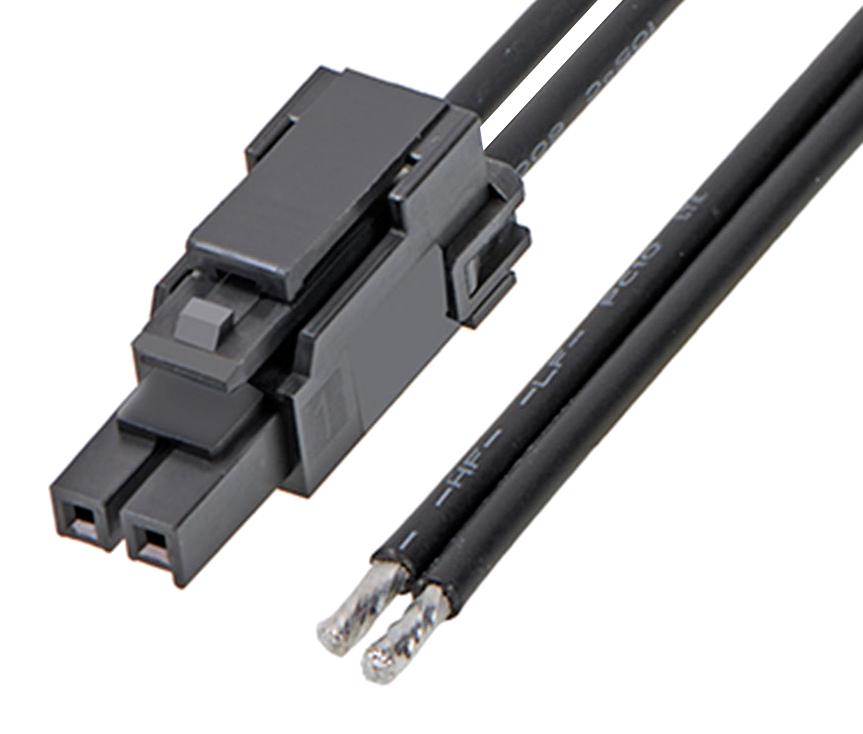

MOLEX 2174661021 Cable Assembly
The Ultra-Fit Female-to-Pigtail Off-the-Shelf Cable Assembly features a 3.50mm pitch with a single row configuration. It measures 150mm in length, accommodates 2 circuits, and comes in black. Designed with high-quality materials, it uses high conductivity copper with tin plating for durability and reliable electrical performance. Suitable for power and wire-to-board connections, it supports current up to 14.0A and maximum voltage of 600V AC/DC. This assembly is RoHS and REACH compliant, halogen-free, and ideal for electronics requiring secure crimp or compression termination.
MOLEX 2174661021 Cable Assembly Specifications:
- Pitch: 3.50mm
- Cable Length: 150.00mm
- Circuits: 2
- Color: Black
- Gender: Female-Pigtail
- Material - Metal: High Conductivity Copper
- Material - Plating Mating and Termination: Tin
- Wire Insulation Diameter: 2.03-2.39mm
- Wire Size AWG: 16
- Wire/Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 14.0A
- Voltage - Maximum: 600V AC/DC
- Packaging: Bag
- Assembly Configuration: Connector to Connector
- Termination Interface Style: Crimp or Compression
Buy the Molex Series Ultra-Fit Female-to-Pigtail Cable Assembly: 2174661021
Order the Molex Ultra-Fit Female-to-Pigtail Cable Assembly now for secure, high-performance power and wire-to-board connections. This 150mm assembly with a 3.50mm pitch features 2 circuits, tin-plated high conductivity copper, and reliable crimp or compression termination. Designed for electronics requiring durable and RoHS-compliant wiring, it offers a maximum current of 14A and voltage of 600V. Perfect for industrial, automation, and electronic device assembly, ensuring quality, safety, and ease of installation.
Get Molex 2174661021 today—built for reliable power connections and long-lasting durability.
