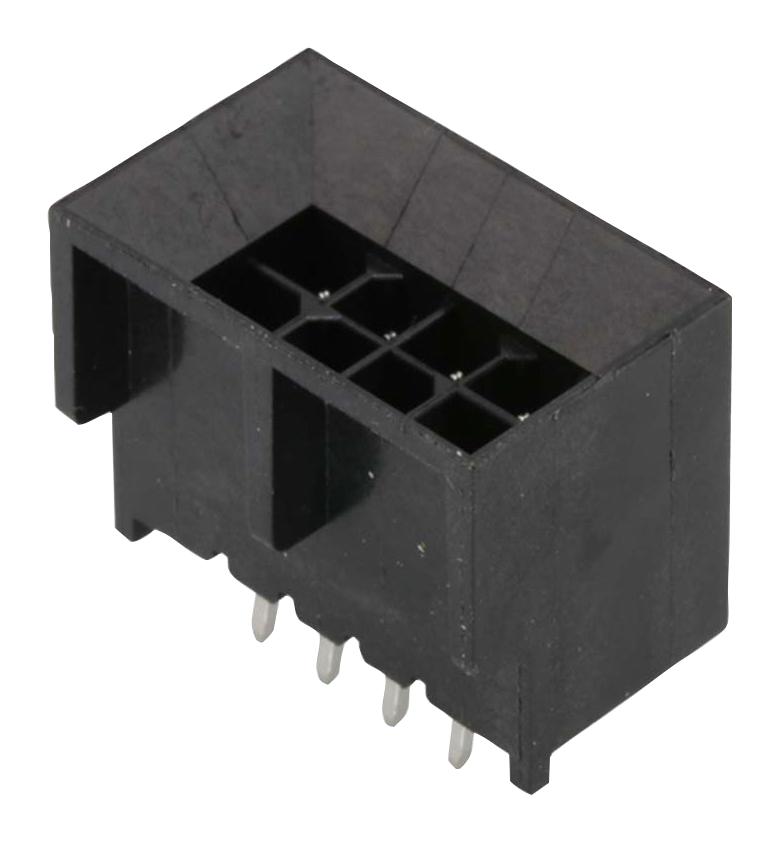

MOLEX 444320802 Micro-Fit 3.0 PCB Header
The Micro-Fit 3.0 Connector System features a high-density, dual-row, surface-mount compatible PCB header with 8 circuits, featuring gold selective plating, kinked tails, and polarizing peg for precise mating. Designed for high temperature operations from -40°C to +105°C, it supports board-to-board and wire-to-board applications, providing up to 8.5A per contact and 250V maximum voltage. Made from high-temperature thermoplastic with brass contacts, it ensures durability and reliable electrical performance in various industrial environments.
MOLEX 444320802 Micro-Fit 3.0 PCB Header Specifications:
- Number of Circuits: 8
- Color - Resin: Black
- Flammability: 94V-0
- Material - Metal: Brass
- Plating - Mating: Gold
- Plating - Termination: Tin
- Temperature Range - Operating: -40°C to +105°C
- Surface Mount Compatible: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Max Current per Contact: 8.5A
- Max Voltage: 250V AC/DC
- Durability (Mating Cycles Max): Not specified
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 1.766g
- Component Orientation: Vertical
- PC Tail Length: 3.30mm
- PCB Retention: Yes
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- RoHS Compliance: Yes
- UL/CSA Certified: Yes
Buy the Molex Series Micro-Fit 3.0 Connector: 444320802
Purchase the Molex Micro-Fit 3.0 PCB Header online today to experience a reliable, high-quality connection solution for your power and signal requirements. This dual-row, surface-mount component supports up to 8.5A per contact at 250V, with gold-plated contacts and a robust thermoplastic housing. Designed to operate from -40°C to +105°C, it is ideal for industrial, automation, and electronic projects. Order now for fast delivery and high-performance electrical connectivity in your systems.
Order your Molex Series Micro-Fit 3.0 connector with 8 circuits today and ensure reliable, high-temperature electrical connections for your application.
