MOLEX 2163301062 Datasheet & Stock

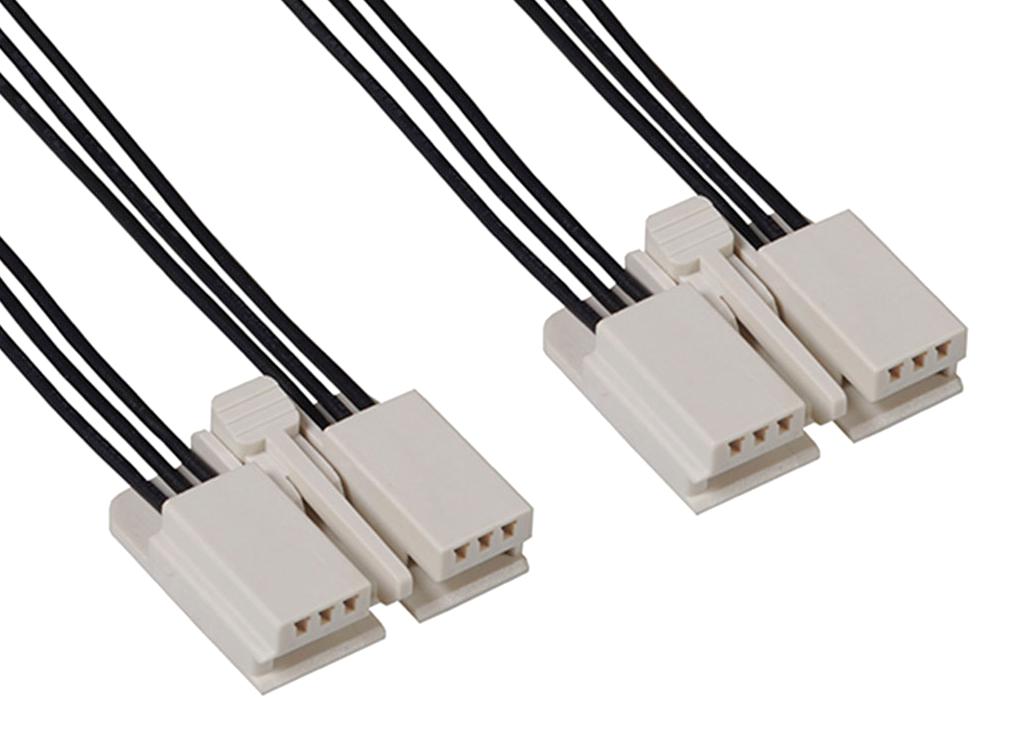

The off-the-shelf EdgeLock 216330 series cable assembly features a space-saving design with a positive locking mechanism to ensure secure mating. It includes a locking feature on the reverse side of the crimp terminal to prevent accidental withdrawal once inserted into the housing cavity. The dual cantilever crimp terminal with embossed contact points provides greater normal force for long-term electrical reliability. The connector housing has a polarization rib to prevent mis-mating with the PCB. Suitable for use in consumer electronics, home appliances, industrial applications, and solid-state lighting, the assembly is UL-approved (file no.: E29179) with a maximum voltage of 125VAC/DC and a current of up to 3A. It is rated for up to 30 mating cycles, with a temperature range from -10°C to +105°C, featuring a nylon housing, phosphor bronze contacts with tin plating, and underplating.
Frequently Asked Questions
Where can I buy MOLEX 2163301062?
You can click on the BUY or RFQ button to purchase 2163301062 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2163301062?
You can download the 2163301062 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2163301062?
MOLEX
