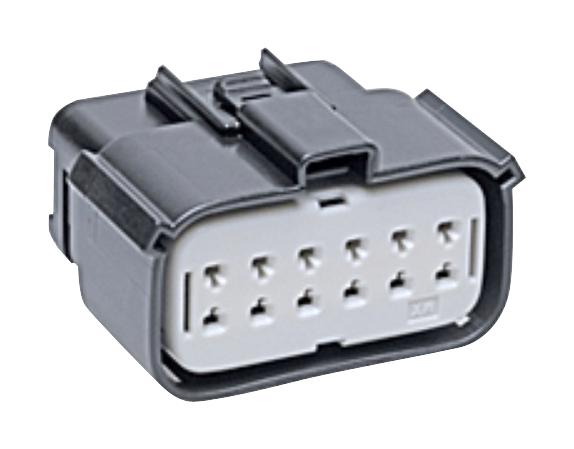

MOLEX 194180037 MX150L Receptacle Connector
The MOLEX 19418-0037 is a robust MX150L industrial sealed connector receptacle designed for demanding applications requiring reliable power and signal transmission. It is specifically engineered for wire-to-board and wire-to-wire connections in industrial settings. The connector boasts 12 circuits, is IP67 rated for protection against dust and water ingress, and is designed to accommodate 14-16 AWG wire. While it conforms to UL 1977 standards, it is not suitable for automotive applications with specific USCAR or Toyota Connector Spec requirements. Its robust design and sealed construction make it ideal for harsh environments where reliability is paramount.
MOLEX 194180037 MX150L Receptacle Connector Specifications:
- overview: MX150L Industrial Sealed Connector System
- application: Power, Wire-to-Board, Wire-to-Wire
- comments: IP67 rated; conforms to UL 1977. NOT suitable for automotive applications
- circuits_maximum: 12
- color_resin: Black
- flammability: 94V-0
- gender: Receptacle
- lock_to_mating_part: Yes
- net_weight_g: 30.430
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 5.84
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- current_maximum_per_contact_a: 18.0
- material_info: Various
- drawing_numbers: PK-19418-001, PS-19417-001-001, SD-19418-006
- series: 19418 Series
- mates_with: 19419 Plug, 19429 Panel Mount Plug
- use_with: 19420 Female Crimp Terminal
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
