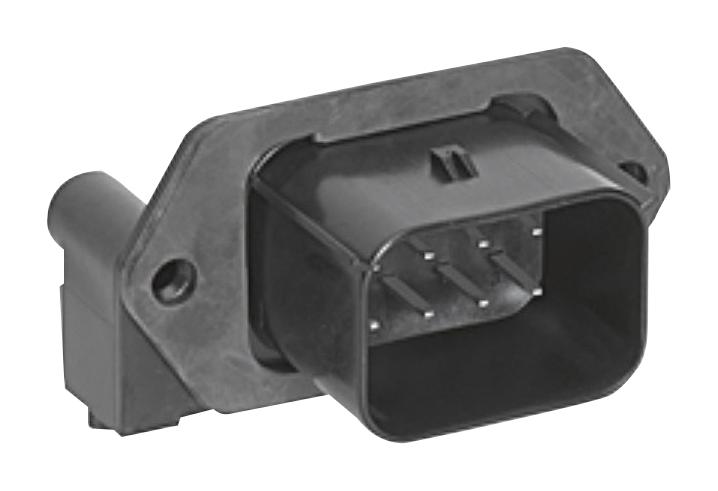

MOLEX 194270017 MX150L PCB Header
The MOLEX 19427-0017 is a robust right-angle PCB header within the MX150L Industrial Sealed Connector System. Designed for demanding industrial environments, this header offers a 5.84mm pitch and a dual-row configuration with 8 circuits. It's IP67 rated, providing protection against dust and water ingress. The header features tin plating for both mating and termination interfaces, ensuring reliable electrical connections. While suitable for various power and wire-to-board applications, it's important to note that it is not designed for automotive applications requiring specific USCAR or Toyota Connector Spec compliance. This header provides a secure and reliable connection solution for industrial equipment and machinery.
MOLEX 194270017 MX150L PCB Header Specifications:
- part_number: 0194270017
- status: Active
- overview: MX150L Industrial Sealed Connector System
- description: 5.84mm Pitch MX150L Right-Angle PCB Header, Dual Row, without PCB Flange, 8 Circuits
- agency_certification: UL E152602
- product_family: PCB Headers
- series: 19427
- application: Power, Wire-to-Board
- comments: IP67 rated; conforms to UL 1977. NOT suitable for automotive applications
- product_literature_order_no: 987650-2181
- product_name: MX150L
- upc: 822348739998
- breakaway: No
- circuits_loaded: 8
- circuits_maximum: 8
- durability_mating_cycles: 25
- flammability: 94V-0
- glow_wire_capable: No
- lock_to_mating_part: Yes
- material_plating_mating: Tin
- material_plating_termination: Tin
- net_weight_g: 62.336
- number_of_rows: 2
- orientation: Right Angle
- pc_tail_length_mm: 3.30
- pcb_locator: Yes
- pcb_retention: None
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Tray
- pitch_mating_interface_mm: 5.84
- polarized_to_mating_part: Yes
- polarized_to_pcb: No
- shrouded: Fully Stackable
- surface_mount_compatible: No
- temperature_range_operating_c: -40° to +125°
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 18.0
- voltage_maximum_v: 600
- elv: Not Relevant
- china_roh: Not Relevant
- rohs_phthalates: Not Contained
- halogen_free_status: Low-Halogen
