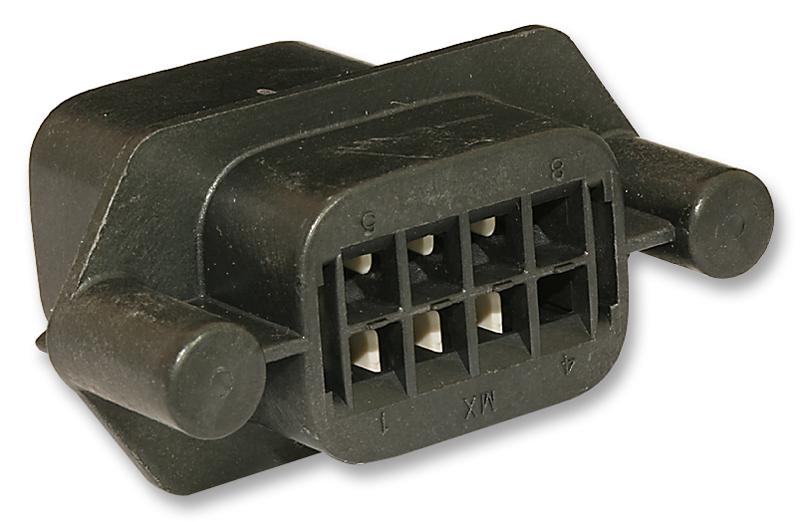

MOLEX 194290037 Industrial Sealed Connector
The MX150L industrial sealed connector system features an 8 circuit panel mount plug compatible with 14-22 AWG wire, designed for indoor panel applications. IP67 rated, it offers reliable protection against dust and water ingress. Made with flame-retardant resin (94V-0) in a black color, it supports operating temperatures from -40°C to +125°C and delivers a maximum current of 18.0A per contact. Suitable for power and wire-to-wire applications, it ensures secure, corrosion-resistant connections with rear mount flange assembly and included gasket for enhanced sealing.
MOLEX 194290037 Industrial Sealed Connector Specifications:
- Circuits (maximum): 8
- Color - Resin: Black
- Flammability: 94V-0
- Gender: Plug
- Assembly: with Gasket, Rear Mount Flange
- Temperature Range - Operating: -40°C to +125°C
- Current - Maximum per Contact: 18.0A
- Pitch - Mating Interface: 5.84mm
- IP Rating: IP67
- Material: Flame-retardant resin
- RoHS: Compliant
- UL Certification: Yes
- Packaging: Bag
- Net Weight: 17.228 g
- Stackable: No
- Polarized to Mating Part: Yes
- Use With: MX150L Male Crimp Terminals
- Mates With: MX150L Receptacle Assemblies
Buy the Molex Series MX150L IP67 Sealed Connector: 0194290037
Enhance your projects with the Molex Series MX150L industrial sealed connector. Designed for indoor panel applications, it features IP67 sealing, supports up to 18A current, and is suitable for 14-22 AWG wire. Constructed with flame-retardant materials and capable of operating from -40°C to +125°C, this connector ensures durable, corrosion-resistant connections. With its rear mount flange and gasket, installation is straightforward, providing robust protection for power and wire-to-wire applications. Purchase online for quick, dependable delivery.
Order your Molex Series MX150L 8 Circuit Panel Mount Plug with Rear Flange today and secure reliable connections for your indoor panel applications.
Frequently Asked Questions
Where can I buy MOLEX 194290037?
You can click on the BUY or RFQ button to purchase 194290037 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 194290037?
You can download the 194290037 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 194290037?
MOLEX
