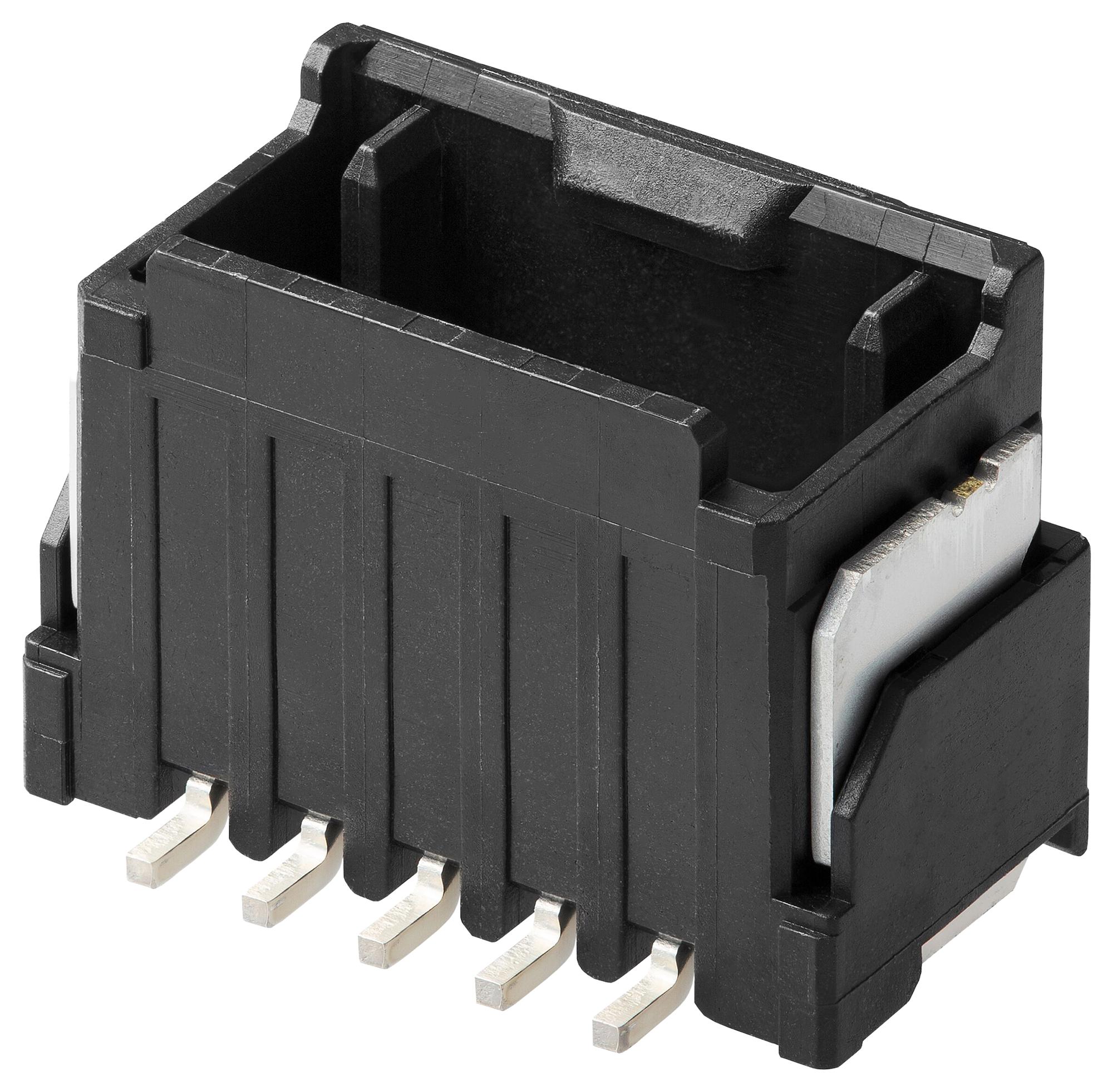

MOLEX 2170630047 Micro-One Wire-to-Board Header
The MOLEX 217063-0047 is a Micro-One wire-to-board header, part of the 217063 series, designed for secure and reliable connections in wire-to-board applications. This header offers a vertical orientation and a 2.00mm pitch, making it suitable for compact designs. The tin-bismuth plating ensures excellent solderability and corrosion resistance. It is glow-wire capable, indicating its suitability for applications requiring high temperature performance. The header is designed for surface mount termination and features polarized PCB retention for ease of assembly. It is commonly used in industrial equipment, consumer electronics, and automotive applications where a robust and compact wire-to-board connection is required.
MOLEX 2170630047 Micro-One Wire-to-Board Header Specifications:
- overview: Micro-One Wire-to-Board Connector System
- description: Micro-One Wire-to-Board Header, Vertical, 2.00mm Pitch, Single Row, Glow-Wire Capable, 4 Circuits, Tin-Bismuth Plating, Black, with Cover Tape
- series: 217063
- circuits_loaded: 4
- circuits_maximum: 4
- color_resin: Black
- durability_mating_cycles: 30
- glow_wire_capable: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating: Tin-Bismuth
- material_resin: Polyamide
- net_weight: 879.641/mg
- number_of_rows: 1
- orientation: Vertical
- pcb_retention: Yes
- packaging_type: Embossed Tape on Reel
- pitch_mating_interface: 2.00mm
- polarized_to_pcb: Yes
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Surface Mount
- current_maximum_per_contact: 4.0A
- voltage_maximum: 250V AC (RMS)/DC
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Not Contained Per - D(2020)9139-DC (19 Jan 2021)
- halogen_free_status: Not Low-Halogen
- mates_with: Micro-One Receptacle Housing 205979
