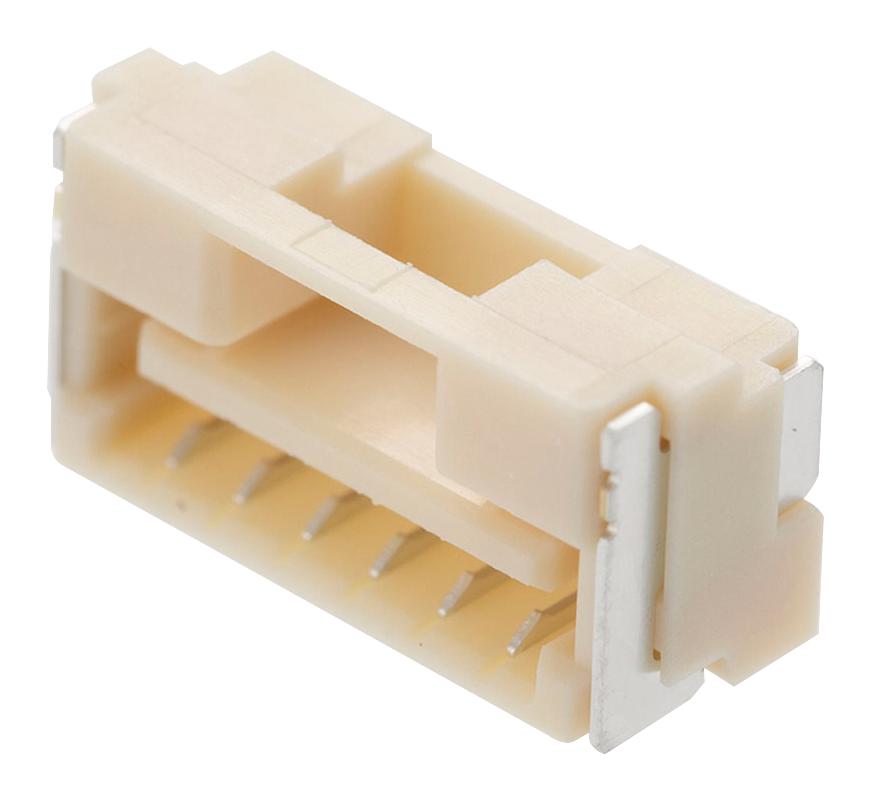

MOLEX 5023860770 PCB Receptacle connector
The 5023860770 is a high-quality wire-to-board PCB receptacle designed for reliable electrical connections in various electronic applications. Part of the CLIK-Mate series, this 7-circuit right-angle connector features a thermoplastic housing, copper alloy contacts, and tin plating for durability and corrosion resistance. Capable of withstanding temperatures from -40°C to +105°C, it supports a maximum current of 1.0A per contact and a voltage of 50V AC/DC. Its compact 1.25mm pitch and stacking capability make it ideal for space-efficient electronic assemblies.
MOLEX 5023860770 PCB Receptacle connector Specifications:
- Circuits (Loaded): 7
- Circuits (Maximum): 7
- Color - Resin: Natural
- Durability (Mating Cycles Max): 30
- Glow-Wire Capable: No
- Guide to Mating Part: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Mated Height: 5.55mm
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 332.401 mg
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: No
- PCB Retention: Yes
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 1.25mm
- Pitch - Termination Interface: 1.25mm
- Plating Min - Mating: 1.016 μm
- Plating Min - Termination: 1.016 μm
- Polarized to Mating Part: Yes
- Polarized to PCB: No
- Stackable: No
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Style: Surface Mount
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 50V AC/DC
- RoHS Compliance: Yes
- REACH SVHC: Not Contained
- Halogen-Free: No
Buy the Molex Series CLIK-Mate PCB Receptacle: 5023860770
Secure your electronic projects with Molex 5023860770, a high-quality 7-circuit PCB receptacle designed for durability and reliable connections. Its right-angle design, tin-plated copper contacts, and high temperature thermoplastic housing ensure long-lasting performance. Suitable for surface-mount assembly, it supports up to 1.0A per contact at 50V. Perfect for space-conscious designs, this connector is RoHS compliant and features embossed tape packaging for easy automated mounting. Upgrade your electronic assemblies with this trusted, high-performance connector today.
Buy Molex 5023860770 now and experience unmatched reliability and performance in your electronic assemblies with space-efficient and durable connectors.
Frequently Asked Questions
Where can I buy MOLEX 5023860770?
You can click on the BUY or RFQ button to purchase 5023860770 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5023860770?
You can download the 5023860770 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5023860770?
MOLEX
