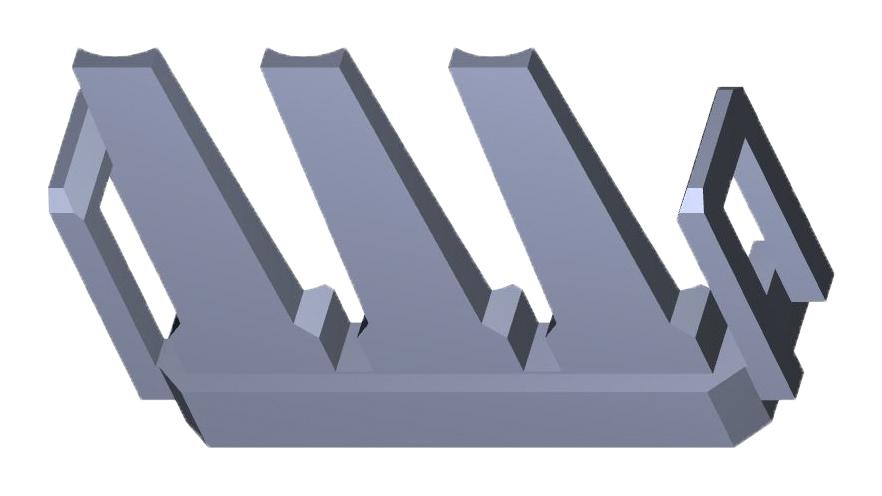

MOLEX 1054150003 Terminal Assurance Retainer
The Mega-Fit Terminal Position Assurance retainer is designed for secure connection in electrical assemblies, fitting 3 circuits with a 5.70mm pitch. Made from UL 94V-0 flame-retardant nylon, it is glow-wire capable and natural in color. It ensures proper terminal positioning, improving safety and reliability in power distribution systems. Compatible with Mega-Fit plug and receptacle housings like 105411, 213814, and 171692, this retainer withstands operating temperatures from -40°C to +105°C. It features a compact, easy-to-use design suitable for various industrial and electronic applications requiring secure terminal connections.
MOLEX 1054150003 Terminal Assurance Retainer Specifications:
- Circuits (Loaded): 3
- Circuits (Maximum): 3
- Color - Resin: Natural
- Lock to Mating Part: Yes
- Material - Resin: Nylon
- Net Weight: 0.280 g
- Number of Rows: 1
- Packaging Type: Bag
- Temperature Range - Operating: -40°C to +105°C
- Material Info: UL 94V-0, Glow-Wire Capable
- Reference - Drawing Numbers: 768232000-AS-000
- Application Specification: 1054171000-PS-000
- Packaging Specification: 1054150001-000
- Product Specification: 1054171000-PS-000, 1054171000-PS-CH-000, 1054171000-PS-KO-000, 1054171000-PS-SPA-000.
Buy the Molex 1054150003 – Reliable Terminal Position Assurance for Industrial Applications
Secure your electrical connections with Molex terminal assurance retainers, designed for 3 circuits with a 5.70mm pitch. Made from UL 94V-0 nylon, glow-wire capable, and suitable for temperatures from -40°C to +105°C, these retainers ensure proper terminal positioning for enhanced safety and reliability. Compatible with Mega-Fit plug and receptacle housings like 105411 and 171692, they are ideal for industrial and electronic power distribution applications requiring durable, easy-to-install retention solutions. Purchase online for quality and dependable performance.
Get Molex 1054150003 today—built for secure, reliable power connections in industrial settings.
