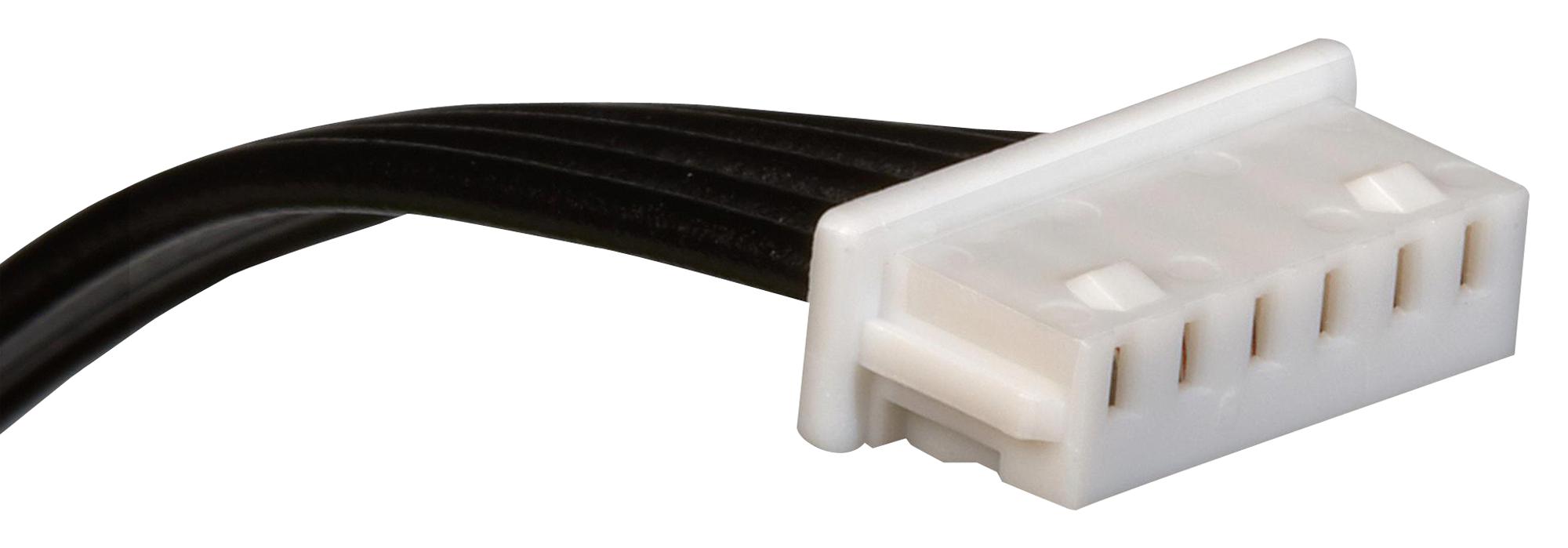

MOLEX 151340603 PicoBlade OTS Cable Assembly
The MOLEX 15134-0603 PicoBlade OTS Cable Assembly provides a pre-terminated solution for connecting PicoBlade connectors. With a 300mm cable length and 6 circuits, it's suitable for applications requiring compact and reliable connections. Constructed with phosphor bronze and tin plating, this assembly ensures excellent conductivity and durability. It is RoHS compliant and designed for ease of integration into various electronic systems.
Authorized Distributors
Source:Mouser Electronics
Part No:15134-0603
Stock:1756
Inv Date:05-30-2026
Price: Unit price: $5.98
Buy/RFQ:
Source:RS Americas, Inc
Part No:15134-0603
Stock:0
Inv Date:05-29-2026
Price: Unit price: $12.18
Buy/RFQ:
Source:Master Electronics
Part No:15134-0603
Stock:805
Inv Date:05-29-2026
Price: Unit price: $3.51
Buy/RFQ:
Part No:15134-0603
Stock:12
Inv Date:05-29-2026
Price: Unit price: $4.1614
Buy/RFQ:
Source:Heilind Electronics
Part No:15134-0603
Stock:52
Inv Date:05-29-2026
Price: Unit price: $4.1614
Buy/RFQ:
Source:Onlinecomponents.com
Part No:15134-0603
Stock:805
Inv Date:05-29-2026
Price: Unit price: $3.51
Buy/RFQ:
MOLEX 151340603 PicoBlade OTS Cable Assembly Specifications:
- overview: PicoBlade Connector System
- product_family: Cable Assemblies
- assembly_configuration: Dual Ended
- connectors: Connector to Connector PicoBlade-to-PicoBlade
- product_literature_order_no: 987651-6143
- upc: 889056871549
- cable_length: 300.00mm
- circuits_loaded: 6
- color_resin: Natural
- gender: Female-Female
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Polyester
- net_weight: 3.000/g
- packaging_type: Bag
- pitch_mating_interface: 1.25mm
- plating_min_mating: 0.889µm
- plating_min_termination: 0.914µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.90mm
- wire_size_awg: 28
- wire_cable_type: UL 1061
- current_maximum_per_contact: 1.0A
- voltage_maximum: 125V
- sales_drawing: 2012341358-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per ED/30/2017
- halogen_free_status: Not Low-Halogen
- mates_with: PicoBlade Header 53261, 53047, 53398, 53048
