MOLEX 877159305 PCI Express Connector

This PCI Express card edge connector features a 1.00mm pitch, 164 circuits, and a nylon 4/6 glass-filled housing with phosphor bronze contacts plated in 0.38um gold. Designed for high-speed data transfer up to 8.0 Gbps, it supports 16 lanes, a maximum of 200 circuits, and operates within a temperature range of -55°C to +85°C. The connector has a vertical entry angle, is RoHS compliant, halogen-free, with a network weight of 8.7 grams, and features a PCB thickness recommendation of 2.40mm. Suitable for demanding PCI Express applications, it offers durability up to multiple mating cycles and is certified by UL and CSA. Its 1.00mm mating and termination pitch ensure precise electrical connections, with gold plating for reliable contact performance.

View 877159305Datasheet [pdf]

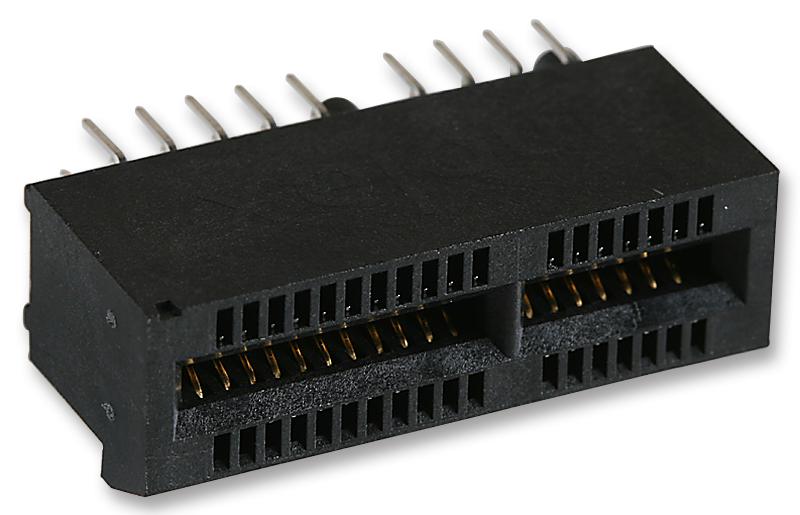

Buy the Buy Molex PCI Express Card Edge Connector Part Number 877159305 Online

Discover the high-performance PCI Express connector with 164 circuits, 1.00mm pitch, and gold-plated contacts for superior electrical connectivity. Engineered for high data rates up to 8.0 Gbps with a robust nylon housing and phosphor bronze contacts, this connector supports up to 200 circuits and features a vertical entry angle for secure mounting. Suitable for high-reliability environments, it operates within -55°C to +85°C and complies with RoHS and halogen-free standards. Perfect for demanding PC and industrial applications, it ensures durability through multiple mating cycles and offers precise electrical connections with a 1.00mm pitch.

Buy Molex 877159305 now and experience reliable high-speed data transfer for demanding PCI Express applications with gold-plated contacts and rugged construction.
