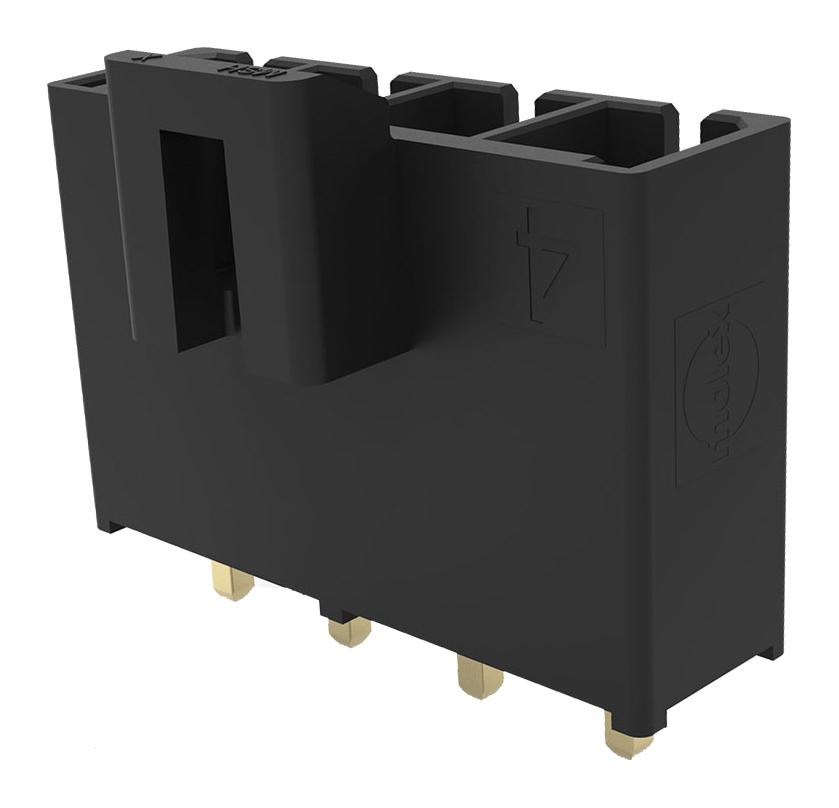

MOLEX 2002411123 Power Connector
The MOLEX Mega-Fit Power Connector is a robust solution for power transmission, delivering up to 25.0A per circuit with fully protected header pins and receptacle terminals. Its unique keying options ensure proper mating, while sacrificial contacts enable hot plugging up to 30 cycles. The connector's power-dense design and tight pitch provide more power per linear millimeter than competing mid-range power products. Applications include home appliances, telecommunications equipment, industrial machinery, and commercial vehicle electronics. The connector is available in various configurations, including right-angle and vertical headers, and receptacles, catering to diverse design requirements. It also features a new latch design for superior retention and low-mating force, along with a TPA guide for terminal positioning.
MOLEX 2002411123 Power Connector Specifications:
- Pitch: 5.70mm
- Current (max): 25.0A
- Voltage (max): 600V
- Contact Resistance: 6 milliohms
- Dielectric Withstanding Voltage: No Breakdown
- Insulation Resistance (min): 1,000 Megohms
- Contact Insertion Force (max): 6.8N
- Contact Retention to Housing: 30N
- Insertion Force to PCB (max): 85N
- Mating Force (Tin plated max): 6.8N
- Mating Force (Gold plated max): 6.0N
- Unmating Force (Tin plated max): 6.5N
- Unmating Force (Gold plated max): 5.6N
- Durability (min): 2 Megohms
- Housing Material: UL 94 V-0
- Contact Plating (Contact Area): Gold (Au) 0.38 or 0.76µ (15 or 30µ")
- Contact Plating (Solder Tail Area): Tin (Sn)
- Underplating: Nickel (Ni)
- Operating Temperature: -40 to +150°C
- Packaging: Bag, Reel, Tray
- UL File No.: E29179
- CSA File No.: LR-19980_A_000
- Mates With: Mega-Fit Receptacles, Plugs
- Terminal Used: Series 172063, 076823, 105418, 105417
- Designed In: Millimeters
- Halogen Free: Yes or No
